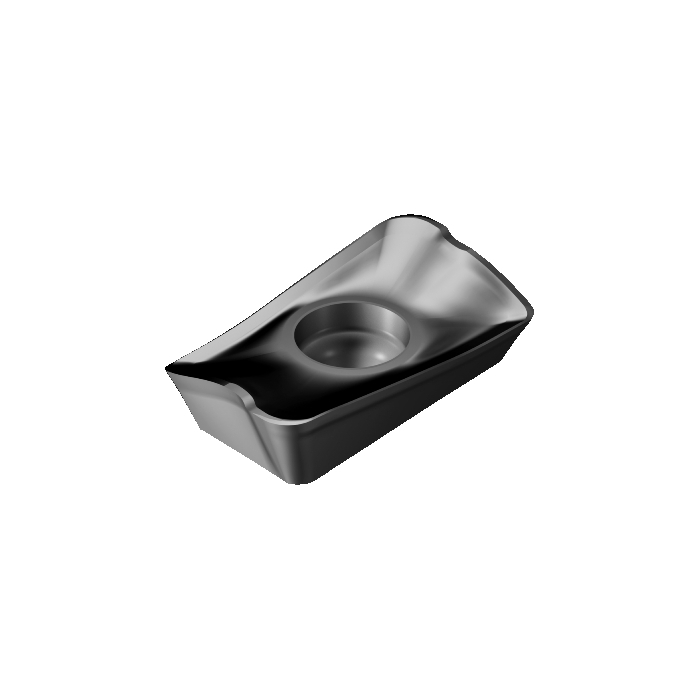

Sandvik Coromant R390-11 T3 16E-MM 1040 CoroMill™ 390 insert for milling

R 385,25 inc. vat
In stock
SKU
5888538
CoroMill® 390 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 390 insert for milling
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 2.1g
AN - Clearance Angle Major 21deg
RE - Corner Radius 1.6mm
Insert Thickness 3.59mm
D1 - Fixing Hole Diameter 2.8mm
LE - Cutting Edge Effective Length 10mm
L - Cutting Edge Length 11.45mm
KRINS - Major Cutting Edge Angle 90deg
BS - Wiper Edge Length 0.4mm
APMX - Depth Of Cut Maximum 10mm
W1 - Insert Width 6.8mm
ORDCODE R390-11 T3 16E-MM 1040
CHANGEDATE 2022-09-23 17:57:00.000
Hand R
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code L
SSC - Insert Seat Size Code 11
CUTINT_SIZESHAPE - Insert Size And Shape MCOR_MH11T3_1
Grade 1040
COATING PVD TiAlN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation MM
CEDC - Cutting Edge Count 2
WEP - Wiper Edge Property True
