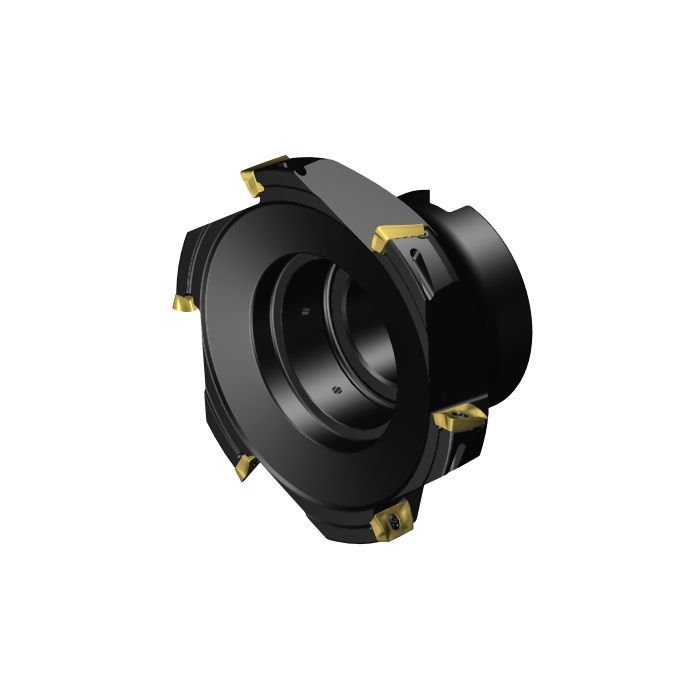

Sandvik Coromant R390-125Q40-17L CoroMill™ 390 square shoulder milling cutter

R 17 458,15 inc. vat
In stock
SKU
5746015
CoroMill® 390 square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 390 square shoulder milling cutter
More Information
DCON - Connection Diameter 40mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 63mm
TQ - Torque 3Nm
RPMX - Rotational Speed Maximum 112001/min
WT - Weight Of Item 2.137kg
OAL - Overall Length 63mm
OHX - Maximum Overhang 63mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 0deg
GAMO - Orthogonal Rake Angle -10.019deg
LAMS - Inclination Angle 26.48deg
AN - Clearance Angle Major 19deg
Insert Thickness 4.7625mm
L - Cutting Edge Length 17.45mm
APMX - Depth Of Cut Maximum 15.7mm
W1 - Insert Width 9.6mm
DC - Cutting Diameter 125mm
DCF - Cutting Diameter Face Contact 123.4mm
GAMF - Radial Rake Angle -10.01899981deg
GAMP - Axial Rake Angle 26.48000018deg
AZ - Maximum Plunge Depth 1.5mm
ORDCODE R390-125Q40-17L
ADINTMS - Adaptive Interface Machine Direction M_FDA1B1_G4000_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-09-26 13:49:00.000
STDLET - Standard Letter B
STDNO - Standard Number ISO6462
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MH1704_1
Hand R
MIID - Master Insert Identification R390-17..
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code L
SSC - Insert Seat Size Code 17
CICT - Cutting Item Count 6
ZEFP - Peripheral Effective Cutting Edge Count 6
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential True
