Sandvik Coromant R390-17 04 50E-MM 2030 CoroMill™ 390 insert for milling
Next
Sandvik Coromant R390-17 04 64E-PM 1010 CoroMill™ 390 insert for milling
Previous
![Sandvik Coromant R390-17 04 50E-MM 2030 CoroMill™ 390 insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/644350b02/sandvik-coromant-r390-17-04-50e-mm-2030-coromilltm-390-insert-for-milling.jpg)
![Sandvik Coromant R390-17 04 64E-PM 1010 CoroMill™ 390 insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/6443335e0/sandvik-coromant-r390-17-04-64e-pm-1010-coromilltm-390-insert-for-milling.jpg)
R 424,35
inc. vat
In stock
SKU
5746038
CoroMill® 390 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days

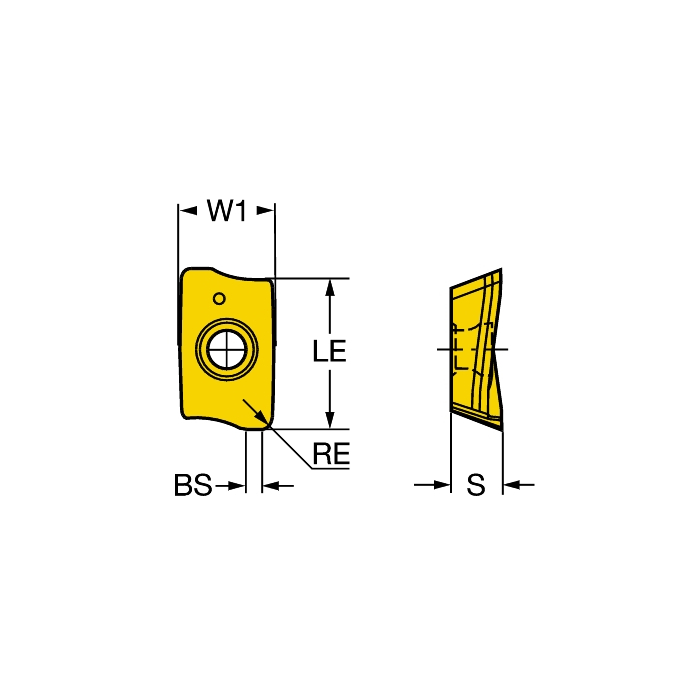

CoroMill® 390 insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 6.1g |
AN - Clearance Angle Major | 19deg |
RE - Corner Radius | 6.35mm |
Insert Thickness | 4.7625mm |
D1 - Fixing Hole Diameter | 4.1mm |
LE - Cutting Edge Effective Length | 15.7mm |
L - Cutting Edge Length | 17.45mm |
KRINS - Major Cutting Edge Angle | 90deg |
APMX - Depth Of Cut Maximum | 15mm |
W1 - Insert Width | 9.6mm |
ORDCODE | R390-17 04 64E-PM 1025 |
CHANGEDATE | 2022-09-23 17:11:00.000 |
Hand | R |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | L |
SSC - Insert Seat Size Code | 17 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MH1704_1 |
Grade | 1025 |
COATING | PVD TiCN+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | PM |
CEDC - Cutting Edge Count | 2 |
WEP - Wiper Edge Property | False |
