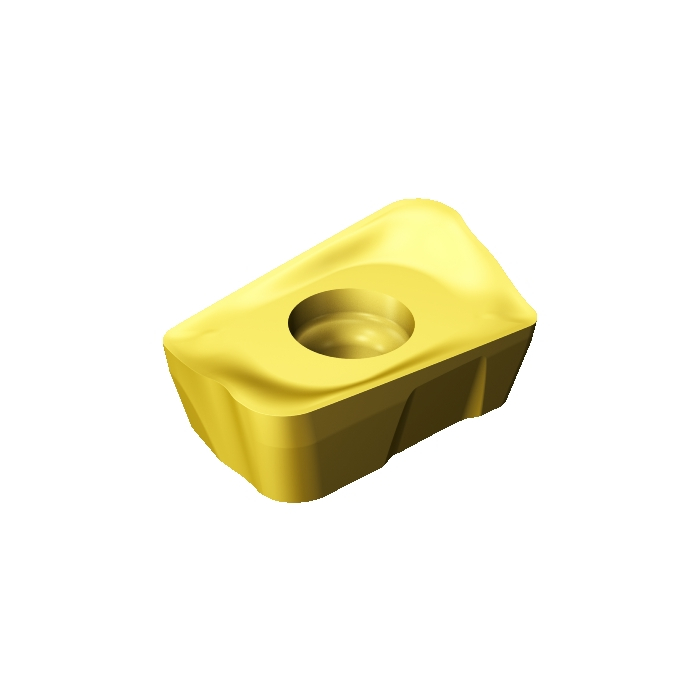

Sandvik Coromant R390-18 06 16H-KTW 1020 CoroMill™ 390 insert for milling
R 577,30
inc. vat
In stock
SKU
5746068
CoroMill® 390 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 390 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 12g |
| AN - Clearance Angle Major | 11deg |
| RE - Corner Radius | 1.6mm |
| Insert Thickness | 6.33mm |
| D1 - Fixing Hole Diameter | 4.15mm |
| LE - Cutting Edge Effective Length | 15.4mm |
| L - Cutting Edge Length | 18.45mm |
| KRINS - Major Cutting Edge Angle | 90deg |
| BS - Wiper Edge Length | 8.6mm |
| APMX - Depth Of Cut Maximum | 16.1mm |
| W1 - Insert Width | 11mm |
| ORDCODE | R390-18 06 16H-KTW 1020 |
| CHANGEDATE | 2021-12-17 18:59:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | L |
| SSC - Insert Seat Size Code | 18 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MH1806_1 |
| Grade | 1020 |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | KTW |
| CEDC - Cutting Edge Count | 1 |
| WEP - Wiper Edge Property | True |
