Sandvik Coromant R390-17 04 04E-KM H13A CoroMill™ 390 insert for milling
Next
Sandvik Coromant R390-18 06 20M-PM 4220 CoroMill™ 390 insert for milling
Previous
![Sandvik Coromant R390-17 04 04E-KM H13A CoroMill™ 390 insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/6441253b4/sandvik-coromant-r390-17-04-04e-km-h13a-coromilltm-390-insert-for-milling.jpg)
![Sandvik Coromant R390-18 06 20M-PM 4220 CoroMill™ 390 insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/644077598/sandvik-coromant-r390-18-06-20m-pm-4220-coromilltm-390-insert-for-milling.jpg)
R 496,80
inc. vat
In stock
SKU
5745982
CoroMill® 390 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days

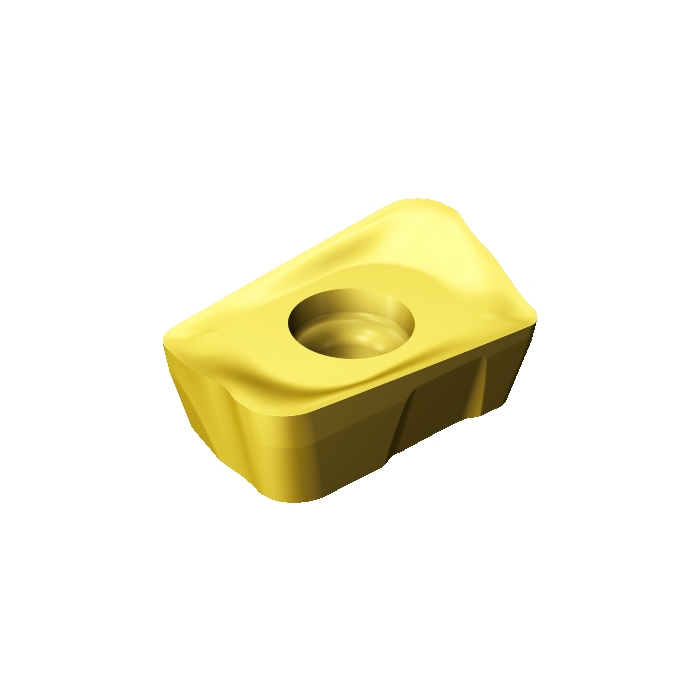

CoroMill® 390 insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 0.006kg |
AN - Clearance Angle Major | 11deg |
RE - Corner Radius | 2.4mm |
Insert Thickness | 6.33mm |
D1 - Fixing Hole Diameter | 4.15mm |
LE - Cutting Edge Effective Length | 15.4mm |
L - Cutting Edge Length | 18.45mm |
KRINS - Major Cutting Edge Angle | 90deg |
BS - Wiper Edge Length | 1mm |
APMX - Depth Of Cut Maximum | 16mm |
W1 - Insert Width | 11mm |
ORDCODE | R390-18 06 24H-ML 2030 |
CHANGEDATE | 2022-09-23 17:10:00.000 |
Hand | R |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | L |
SSC - Insert Seat Size Code | 18 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MH1806_1 |
Grade | 2030 |
COATING | PVD TiAlN+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | ML |
CEDC - Cutting Edge Count | 2 |
WEP - Wiper Edge Property | True |
