Sandvik Coromant R390-18 06 31M-MM 2040 CoroMill™ 390 insert for milling
Next
Sandvik Coromant R390-18 06 24H-PL 1025 CoroMill™ 390 insert for milling
Previous
![Sandvik Coromant R390-18 06 31M-MM 2040 CoroMill™ 390 insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/64344bc86/sandvik-coromant-r390-18-06-31m-mm-2040-coromilltm-390-insert-for-milling.jpg)
![Sandvik Coromant R390-18 06 24H-PL 1025 CoroMill™ 390 insert for milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/64342a415/sandvik-coromant-r390-18-06-24h-pl-1025-coromilltm-390-insert-for-milling.jpg)
R 394,45
inc. vat
In stock
SKU
5745801

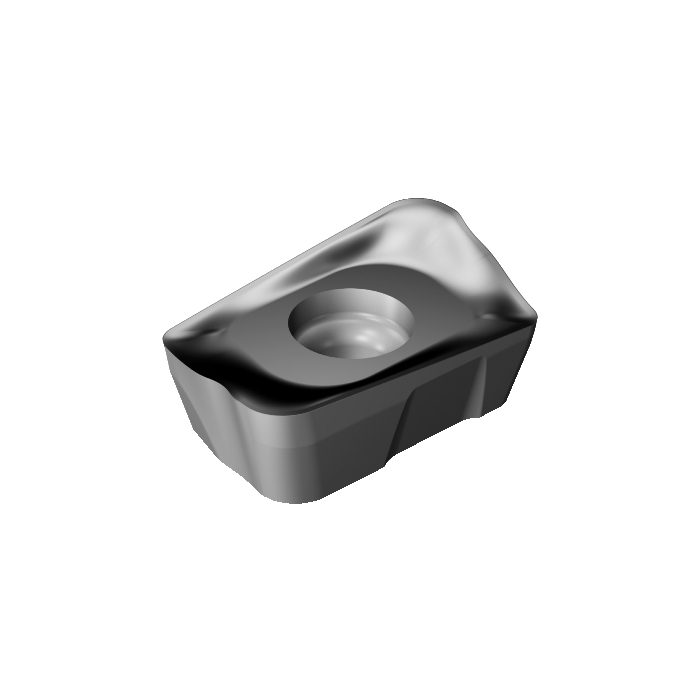

CoroMill® 390 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 390 insert for milling
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 10.9g |
AN - Clearance Angle Major | 11deg |
RE - Corner Radius | 3.1mm |
Insert Thickness | 6.33mm |
D1 - Fixing Hole Diameter | 4.15mm |
LE - Cutting Edge Effective Length | 15.4mm |
L - Cutting Edge Length | 18.45mm |
KRINS - Major Cutting Edge Angle | 90deg |
BS - Wiper Edge Length | 0.5mm |
APMX - Depth Of Cut Maximum | 16mm |
W1 - Insert Width | 11mm |
ORDCODE | R390-18 06 31M-KM 3040 |
CHANGEDATE | 2022-09-23 16:58:00.000 |
Hand | R |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | L |
SSC - Insert Seat Size Code | 18 |
CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_MH1806_1 |
Grade | 3040 |
COATING | CVD TiCN+Al2O3 |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | KM |
CEDC - Cutting Edge Count | 2 |
WEP - Wiper Edge Property | True |
