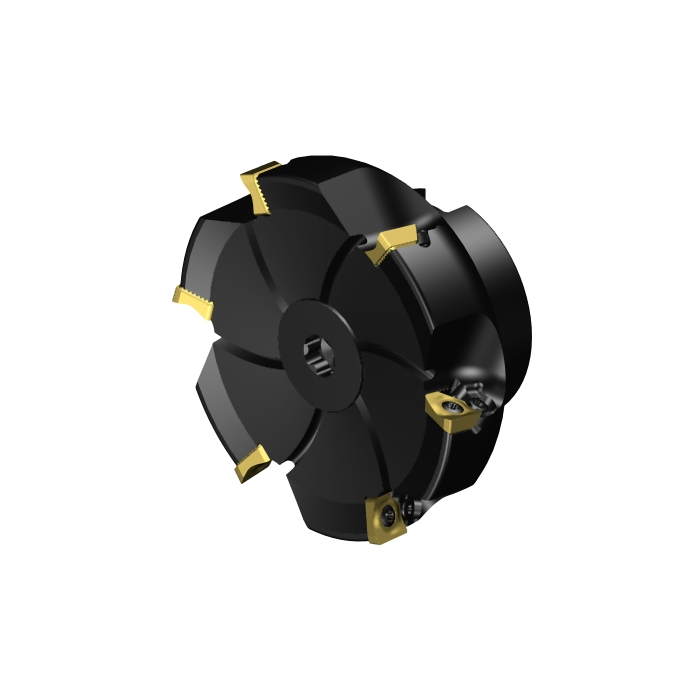

Sandvik Coromant R590-100Q32S-11M CoroMill™ Century square shoulder milling cutter
R 18 677,15
inc. vat
In stock
SKU
5747697
CoroMill® Century square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Century square shoulder milling cutter
| CP - Coolant Pressure | 1000000Pa |
|---|---|
| DCON - Connection Diameter | 32mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 50mm |
| TQ - Torque | 3Nm |
| RPMX - Rotational Speed Maximum | 238001/min |
| WT - Weight Of Item | 1.5kg |
| OAL - Overall Length | 50mm |
| OHX - Maximum Overhang | 50mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| RMPX - Maximum Ramping Angle | 0deg |
| GAMO - Orthogonal Rake Angle | -12.1deg |
| LAMS - Inclination Angle | 8deg |
| Insert Thickness | 5mm |
| APMX - Depth Of Cut Maximum | 11mm |
| W1 - Insert Width | 11.5mm |
| DC - Cutting Diameter | 100mm |
| DCF - Cutting Diameter Face Contact | 99.2mm |
| GAMF - Radial Rake Angle | -12.09999977deg |
| GAMP - Axial Rake Angle | 7.99999974deg |
| AZ - Maximum Plunge Depth | 0mm |
| ORDCODE | R590-100Q32S-11M |
| ADINTMS - Adaptive Interface Machine Direction | M_FDA1A1_G3200_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-09-26 13:50:00.000 |
| STDLET - Standard Letter | A |
| STDNO - Standard Number | ISO6462 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MJ1105_2 |
| Hand | R |
| MIID - Master Insert Identification | R590-1105.. |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 11 |
| CICT - Cutting Item Count | 6 |
| ZEFP - Peripheral Effective Cutting Edge Count | 6 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | False |
