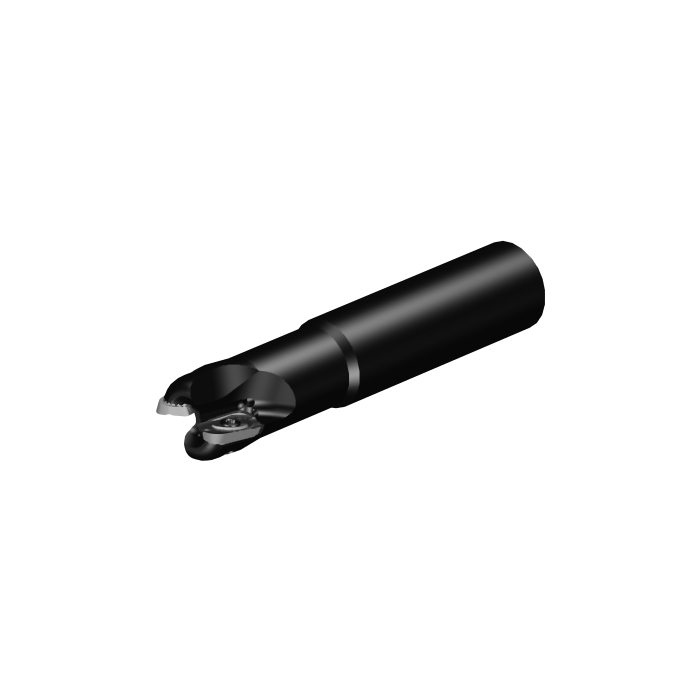

Sandvik Coromant R790-025C5S2-16L CoroMill™ 790 square shoulder milling cutter
Next
Sandvik Coromant R790-050C5S1-22L CoroMill™ 790 square shoulder milling cutter
Previous
![Sandvik Coromant R790-025C5S2-16L CoroMill™ 790 square shoulder milling cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/64545647c/sandvik-coromant-r790-025c5s2-16l-coromilltm-790-square-shoulder-milling-cutter.jpg)
![Sandvik Coromant R790-050C5S1-22L CoroMill™ 790 square shoulder milling cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/64543b7ea/sandvik-coromant-r790-050c5s1-22l-coromilltm-790-square-shoulder-milling-cutter.jpg)
R 10 026,85
inc. vat
In stock
SKU
5747275
CoroMill® 790 square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 790 square shoulder milling cutter
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 25mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 125mm |
TQ - Torque | 3Nm |
RPMX - Rotational Speed Maximum | 603001/min |
WT - Weight Of Item | 0.385kg |
OAL - Overall Length | 125mm |
OHX - Maximum Overhang | 69mm |
LSC - Clamping Length | 65mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 19deg |
GAMO - Orthogonal Rake Angle | -0.5deg |
LAMS - Inclination Angle | 11deg |
Insert Thickness | 4mm |
LU - Usable Length | 50mm |
APMX - Depth Of Cut Maximum | 12mm |
W1 - Insert Width | 11mm |
DC - Cutting Diameter | 25mm |
DCF - Cutting Diameter Face Contact | 21mm |
GAMF - Radial Rake Angle | -0.50000013deg |
GAMP - Axial Rake Angle | 11.00000005deg |
AZ - Maximum Plunge Depth | 2mm |
ORDCODE | R790-025A25S2-16L |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_G2500_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-08-18 15:49:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_ML1604_1 |
Hand | R |
MIID - Master Insert Identification | R790-1604.. |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 16 |
CICT - Cutting Item Count | 2 |
ZEFP - Peripheral Effective Cutting Edge Count | 2 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
LOCAP - Location Aid Property | False |
CPDF - Cutting Pitch Differential | False |
