Sandvik Coromant R590-125Q40A-11M CoroMill™ Century square shoulder milling cutter
Next
Sandvik Coromant R790-032C5S2-16M CoroMill™ 790 square shoulder milling cutter
Previous
![Sandvik Coromant R590-125Q40A-11M CoroMill™ Century square shoulder milling cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/64558c183/sandvik-coromant-r590-125q40a-11m-coromilltm-century-square-shoulder-milling-cutter.jpg)
![Sandvik Coromant R790-032C5S2-16M CoroMill™ 790 square shoulder milling cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/64549a477/sandvik-coromant-r790-032c5s2-16m-coromilltm-790-square-shoulder-milling-cutter.jpg)
R 12 866,20
inc. vat
Out of stock
SKU
5747292
CoroMill® 790 square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days

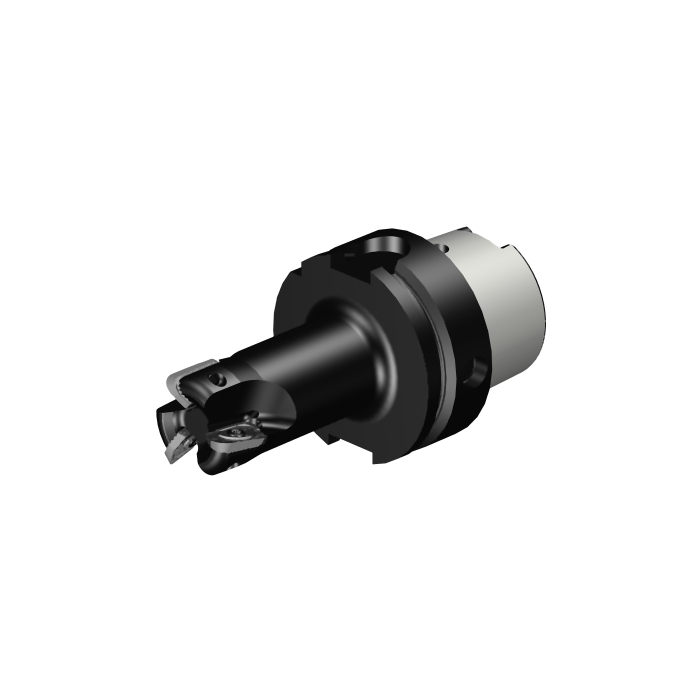

CoroMill® 790 square shoulder milling cutter
CP - Coolant Pressure | 1000000Pa |
---|---|
DFC - Functional Diameter | 48.01mm |
DCON - Connection Diameter | 63mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 92mm |
TQ - Torque | 3Nm |
RPMX - Rotational Speed Maximum | 200001/min |
WT - Weight Of Item | 0.907kg |
OAL - Overall Length | 124mm |
OHX - Maximum Overhang | 92mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 13deg |
GAMO - Orthogonal Rake Angle | 1deg |
LAMS - Inclination Angle | 11deg |
Insert Thickness | 4mm |
LU - Usable Length | 61mm |
APMX - Depth Of Cut Maximum | 12mm |
W1 - Insert Width | 11mm |
DC - Cutting Diameter | 32mm |
DCF - Cutting Diameter Face Contact | 28mm |
GAMF - Radial Rake Angle | 0.99999972deg |
GAMP - Axial Rake Angle | 11.00000005deg |
AZ - Maximum Plunge Depth | 2mm |
ORDCODE | R790-032HA06S2-16M |
ADINTMS - Adaptive Interface Machine Direction | M_HSK01_C0630_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-09-26 13:49:00.000 |
STDLET - Standard Letter | A |
STDNO - Standard Number | DIN69893-1 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_ML1604_1 |
Hand | R |
MIID - Master Insert Identification | R790-1604.. |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 16 |
CICT - Cutting Item Count | 3 |
ZEFP - Peripheral Effective Cutting Edge Count | 3 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
