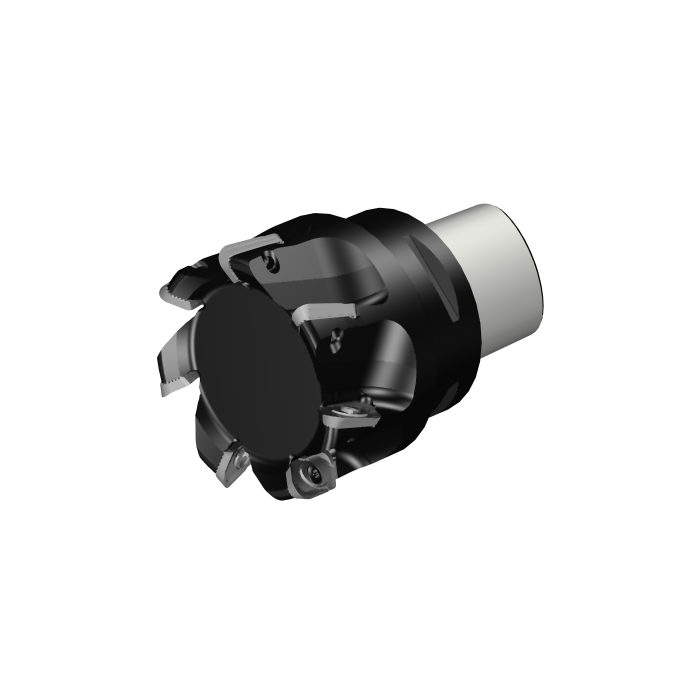

Sandvik Coromant R790-100C8S1-22H CoroMill™ 790 square shoulder milling cutter

R 28 797,15 inc. vat
Out of stock
SKU
5912568
CoroMill® 790 square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 790 square shoulder milling cutter
More Information
CP - Coolant Pressure 1000000Pa
DFC - Functional Diameter 55mm
DCON - Connection Diameter 80mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 85mm
TQ - Torque 5Nm
RPMX - Rotational Speed Maximum 140001/min
WT - Weight Of Item 3.793kg
OAL - Overall Length 133mm
OHX - Maximum Overhang 85mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 4deg
GAMO - Orthogonal Rake Angle 7deg
LAMS - Inclination Angle 13deg
Insert Thickness 5mm
APMX - Depth Of Cut Maximum 18mm
W1 - Insert Width 16mm
DC - Cutting Diameter 100mm
DCF - Cutting Diameter Face Contact 92mm
GAMF - Radial Rake Angle 6.99999995deg
GAMP - Axial Rake Angle 12.99999994deg
AZ - Maximum Plunge Depth 0mm
ORDCODE R790-100C8S1-22H
ADINTMS - Adaptive Interface Machine Direction M_CCS01_C0800_1
CNSC - Coolant Entry Style Code 3
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-09-26 13:57:00.000
STDNO - Standard Number ISO26623-1
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_ML2205_1
Hand R
MIID - Master Insert Identification R790-2205..
IFS - Insert Mounting Style Code 3
SSC - Insert Seat Size Code 22
CICT - Cutting Item Count 7
ZEFP - Peripheral Effective Cutting Edge Count 7
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
