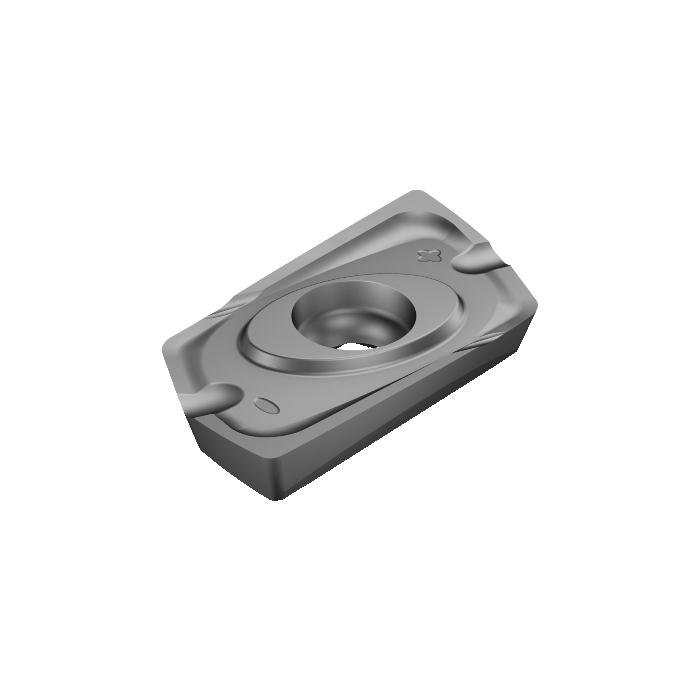

Sandvik Coromant R790-220505PH-NM H13A CoroMill™ 790 insert for milling
R 756,70
inc. vat
In stock
SKU
5747866
CoroMill® 790 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 790 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 18g |
| AN - Clearance Angle Major | 25deg |
| RE - Corner Radius | 0.5mm |
| Insert Thickness | 5mm |
| D1 - Fixing Hole Diameter | 5.7mm |
| LE - Cutting Edge Effective Length | 18mm |
| KRINS - Major Cutting Edge Angle | 90deg |
| BS - Wiper Edge Length | 1mm |
| APMX - Depth Of Cut Maximum | 18mm |
| W1 - Insert Width | 16mm |
| ORDCODE | R790-220505PH-NM H13A |
| CHANGEDATE | 2022-09-23 17:38:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 22 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_ML2205_1 |
| Grade | H13A |
| SUBSTRATE | HW |
| CBMD - Chip Breaker Manufacturer's Designation | NM |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | True |
