R 1 322,50
inc. vat
In stock
SKU
5746834
CoroDrill® Delta-C solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days

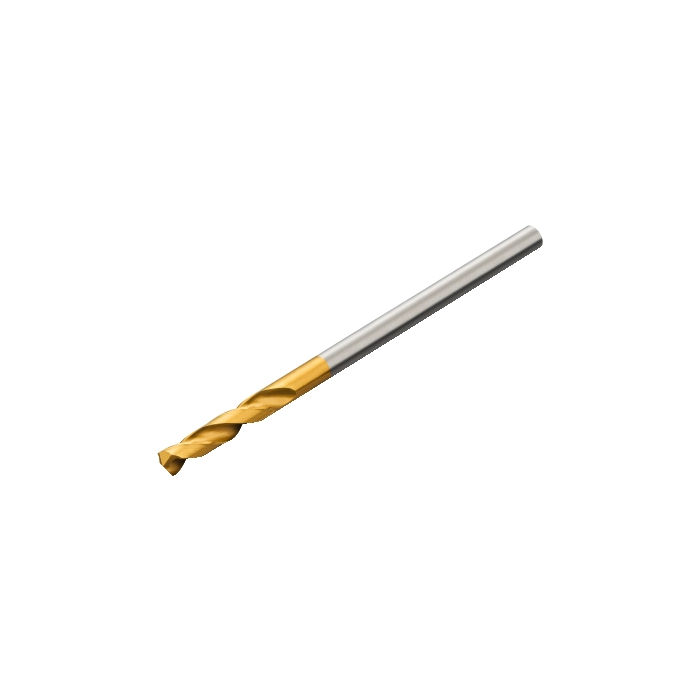

CoroDrill® Delta-C solid carbide drill
DCON - Connection Diameter | 2.8mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 45.5mm |
BD - Body Diameter | 2.8mm |
LB - Body Length | 16mm |
RPMX - Rotational Speed Maximum | 284211/min |
WT - Weight Of Item | 12.3g |
OAL - Overall Length | 46mm |
OHX - Maximum Overhang | 15.4904mm |
LSC - Clamping Length | 25.5mm |
GAMO - Orthogonal Rake Angle | 19.59deg |
LU - Usable Length | 11.7mm |
DC - Cutting Diameter | 2.8mm |
FHA - Flute Helix Angle | 28.8deg |
ULDR - Usable Length Diameter Ratio | 4.178571428571 |
PL - Point Length | 0.5mm |
LCF - Chip Flute Length | 16mm |
SIG - Point Angle | 140deg |
ORDCODE | R840-0280-50-A0B 1020 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_F2800_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-26 13:44:00.000 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1020 |
COATING | PVD TiCN+TiN |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
TCHA - Achievable Hole Tolerance | H9 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
LOCAP - Location Aid Property | False |
