Sandvik Coromant R840-1250-70-A1A 1220 CoroDrill® Delta-C solid carbide drill
Next
Sandvik Coromant R840-1250-50-W1A 1220 CoroDrill® Delta-C solid carbide drill
Previous
![Sandvik Coromant R840-1250-70-A1A 1220 CoroDrill® Delta-C solid carbide drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/729454529/sandvik-coromant-r840-1250-70-a1a-1220-corodrillr-delta-c-solid-carbide-drill.jpg)
![Sandvik Coromant R840-1250-50-W1A 1220 CoroDrill® Delta-C solid carbide drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/72943f3ed/sandvik-coromant-r840-1250-50-w1a-1220-corodrillr-delta-c-solid-carbide-drill.jpg)
R 1 880,25
inc. vat
In stock
SKU
5747953
CoroDrill® Delta-C solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days

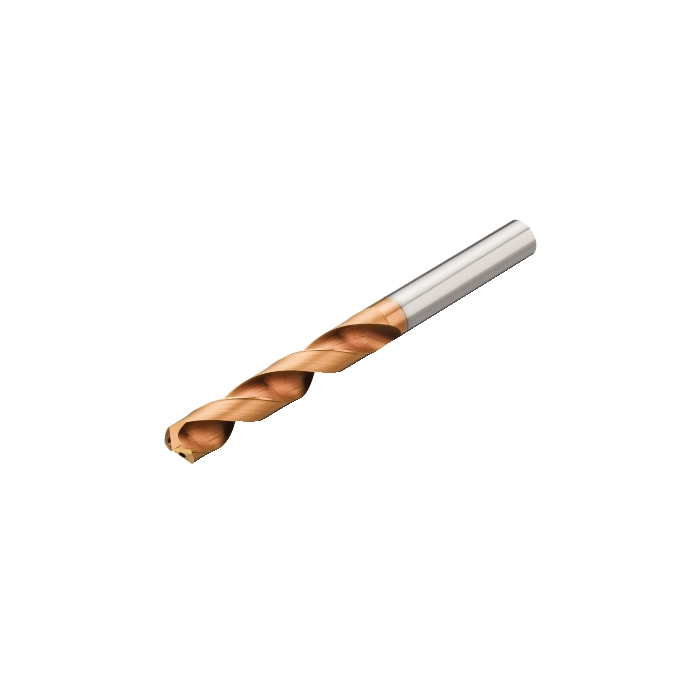

CoroDrill® Delta-C solid carbide drill
CP - Coolant Pressure | 2000000Pa |
---|---|
DCON - Connection Diameter | 6mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 65.3mm |
BD - Body Diameter | 4mm |
LB - Body Length | 30mm |
RPMX - Rotational Speed Maximum | 183031/min |
WT - Weight Of Item | 0.028kg |
OAL - Overall Length | 66mm |
OHX - Maximum Overhang | 29.3256mm |
LSC - Clamping Length | 36mm |
GAMO - Orthogonal Rake Angle | 20.44deg |
LU - Usable Length | 12.7mm |
DC - Cutting Diameter | 4mm |
FHA - Flute Helix Angle | 29.994977deg |
ULDR - Usable Length Diameter Ratio | 3.175 |
PL - Point Length | 0.7mm |
LCF - Chip Flute Length | 24mm |
SIG - Point Angle | 140deg |
ORDCODE | R840-0400-30-A1A 1220 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_F6000_1 |
CNSC - Coolant Entry Style Code | 4 |
CXSC - Coolant Exit Style Code | 4 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-12-21 11:31:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1220 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
BSG - Basic Standard Group | DIN 6537 K |
TCHA - Achievable Hole Tolerance | H9 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
