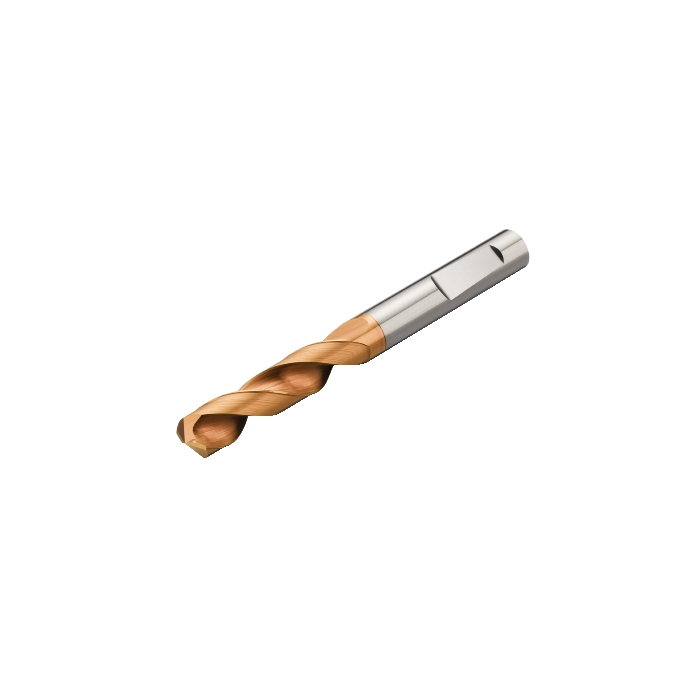

Sandvik Coromant R840-0400-30-W0A 1220 CoroDrill® Delta-C solid carbide drill

Name: Sandvik Coromant R840-0400-30-W0A 1220 CoroDrill® Delta-C solid carbide drill
SKU: 5747957
Price: 1567.45 ZAR
Availability: OutOfStock

Be the first to review this product

R 1 567,45 inc. vat

Out of stock

SKU

5747957

CoroDrill® Delta-C solid carbide drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® Delta-C solid carbide drill

More Information

More Information
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	65.3mm
BD - Body Diameter	4mm
LB - Body Length	30mm
RPMX - Rotational Speed Maximum	183031/min
WT - Weight Of Item	0.02kg
OAL - Overall Length	66mm
OHX - Maximum Overhang	29.3256mm
LSC - Clamping Length	36mm
GAMO - Orthogonal Rake Angle	20.44deg
LU - Usable Length	12.7mm
DC - Cutting Diameter	4mm
FHA - Flute Helix Angle	29.994977deg
ULDR - Usable Length Diameter Ratio	3.175
PL - Point Length	0.7mm
LCF - Chip Flute Length	24mm
SIG - Point Angle	140deg
ORDCODE	R840-0400-30-W0A 1220
ADINTMS - Adaptive Interface Machine Direction	M_CYLWN_F6000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2021-12-21 12:51:00.000
STDLET - Standard Letter	HE
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1220
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	DIN 6537 K
TCHA - Achievable Hole Tolerance	H9
NOF - Flute Count	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
