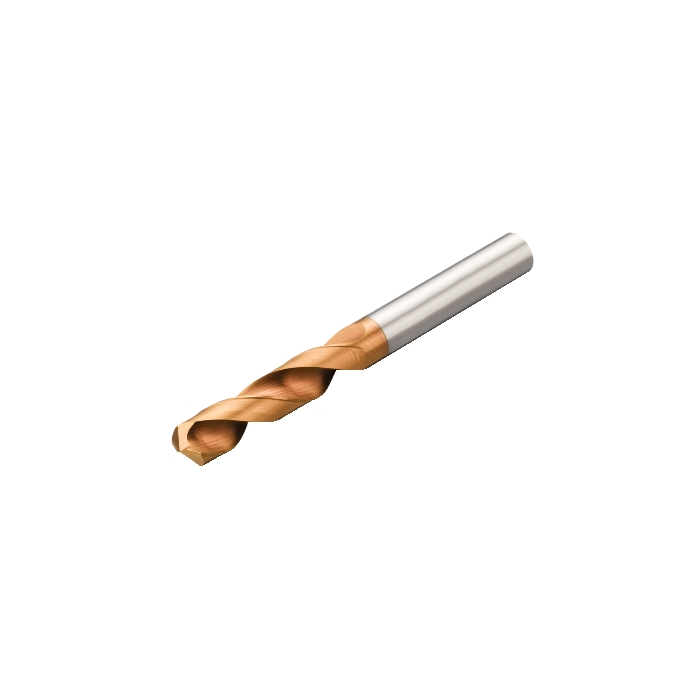

Sandvik Coromant R840-0590-30-A0A 1220 CoroDrill® Delta-C solid carbide drill

R 1 567,45 inc. vat
In stock
SKU
5748145
CoroDrill® Delta-C solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® Delta-C solid carbide drill
More Information
DCON - Connection Diameter 6mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 65mm
BD - Body Diameter 5.9mm
LB - Body Length 30mm
RPMX - Rotational Speed Maximum 124091/min
WT - Weight Of Item 0.032kg
OAL - Overall Length 66mm
OHX - Maximum Overhang 28.9961mm
LSC - Clamping Length 36mm
GAMO - Orthogonal Rake Angle 21.72deg
LU - Usable Length 17.4mm
DC - Cutting Diameter 5.9mm
FHA - Flute Helix Angle 31.769584deg
ULDR - Usable Length Diameter Ratio 2.949152542373
PL - Point Length 1mm
LCF - Chip Flute Length 28mm
SIG - Point Angle 140deg
ORDCODE R840-0590-30-A0A 1220
ADINTMS - Adaptive Interface Machine Direction M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-06-01 05:06:00.000
STDLET - Standard Letter HA
STDNO - Standard Number DIN6535
Hand R
TCDCON - Connection Diameter Tolerance h6
Grade 1220
COATING PVD TiAlN
SUBSTRATE HC
BSG - Basic Standard Group DIN 6537 K
TCHA - Achievable Hole Tolerance H9
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
