R 3 320,05
inc. vat
Out of stock
SKU
5747435

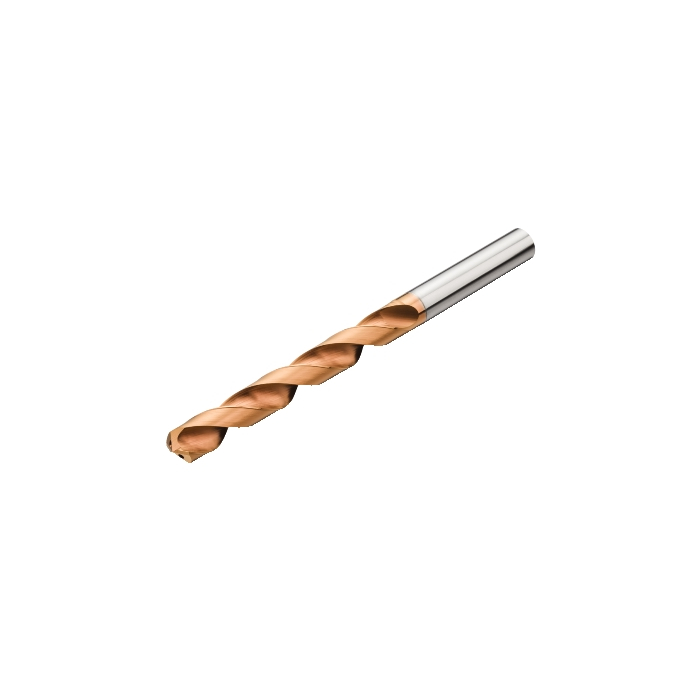

CoroDrill® Delta-C solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® Delta-C solid carbide drill
CP - Coolant Pressure | 2000000Pa |
---|---|
DCON - Connection Diameter | 8mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 103.8mm |
BD - Body Diameter | 7mm |
LB - Body Length | 69mm |
RPMX - Rotational Speed Maximum | 104591/min |
WT - Weight Of Item | 0.061kg |
OAL - Overall Length | 105mm |
OHX - Maximum Overhang | 67.8054mm |
LSC - Clamping Length | 36mm |
GAMO - Orthogonal Rake Angle | 20.12deg |
LU - Usable Length | 49.9mm |
DC - Cutting Diameter | 7mm |
FHA - Flute Helix Angle | 29.543792deg |
ULDR - Usable Length Diameter Ratio | 7.128571428571 |
PL - Point Length | 1.2mm |
LCF - Chip Flute Length | 59mm |
SIG - Point Angle | 140deg |
ORDCODE | R840-0700-70-A1A 1220 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_F8000_1 |
CNSC - Coolant Entry Style Code | 4 |
CXSC - Coolant Exit Style Code | 4 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-12-21 11:28:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1220 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
TCHA - Achievable Hole Tolerance | H9 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
