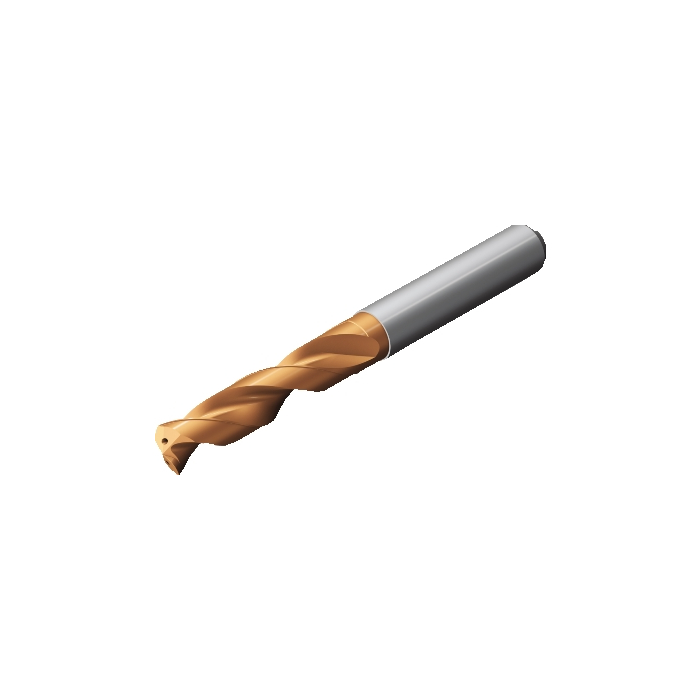

Sandvik Coromant R846-0300-30-A1A 1220 CoroDrill® Delta-C solid carbide drill

Name: Sandvik Coromant R846-0300-30-A1A 1220 CoroDrill® Delta-C solid carbide drill
SKU: 5748630
Price: 1941.20 ZAR
Availability: InStock

Be the first to review this product

R 1 941,20 inc. vat

In stock

SKU

5748630

CoroDrill® Delta-C solid carbide drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® Delta-C solid carbide drill

More Information

More Information
CP - Coolant Pressure	2000000Pa
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	61.5mm
BD - Body Diameter	3mm
LB - Body Length	26mm
RPMX - Rotational Speed Maximum	53051/min
WT - Weight Of Item	0.027kg
OAL - Overall Length	62mm
OHX - Maximum Overhang	25.4927mm
LSC - Clamping Length	36mm
GAMO - Orthogonal Rake Angle	18.77deg
LU - Usable Length	9.5mm
DC - Cutting Diameter	3mm
FHA - Flute Helix Angle	27.636499deg
ULDR - Usable Length Diameter Ratio	3.166666666667
PL - Point Length	0.5mm
LCF - Chip Flute Length	20mm
SIG - Point Angle	140deg
ORDCODE	R846-0300-30-A1A 1220
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_F6000_1
CNSC - Coolant Entry Style Code	4
CXSC - Coolant Exit Style Code	4
BMC - Body Material Code	2
CHANGEDATE	2022-03-14 14:41:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1220
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	DIN 6537 K
TCHA - Achievable Hole Tolerance	H9
NOF - Flute Count	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
