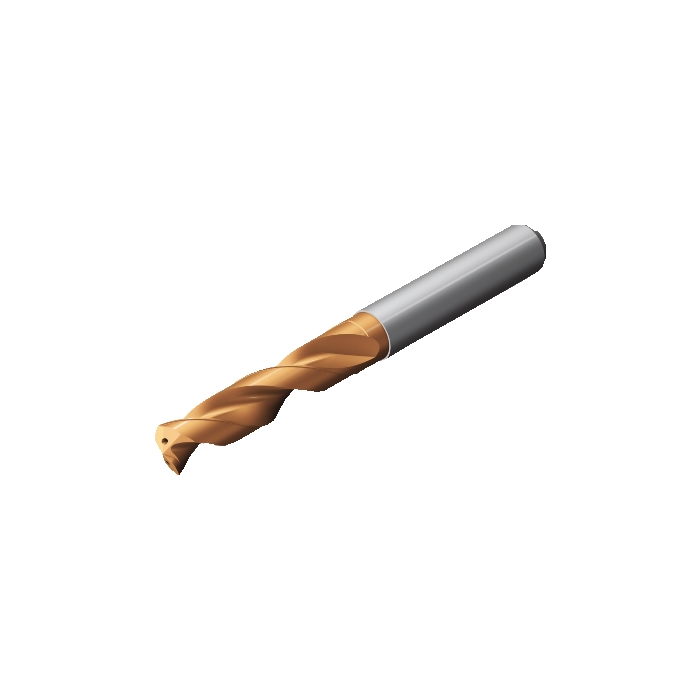

Sandvik Coromant R846-0357-30-A1A 1220 CoroDrill® Delta-C solid carbide drill

Name: Sandvik Coromant R846-0357-30-A1A 1220 CoroDrill® Delta-C solid carbide drill
SKU: 6256332
Price: 1941.20 ZAR
Availability: InStock

Be the first to review this product

R 1 941,20 inc. vat

In stock

SKU

6256332

CoroDrill® Delta-C solid carbide drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® Delta-C solid carbide drill

More Information

More Information
CP - Coolant Pressure	2000000Pa
DCON - Connection Diameter	6mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	61.4mm
BD - Body Diameter	3.572mm
LB - Body Length	26mm
RPMX - Rotational Speed Maximum	44561/min
WT - Weight Of Item	0.025kg
OAL - Overall Length	62mm
OHX - Maximum Overhang	25.396mm
LSC - Clamping Length	36mm
GAMO - Orthogonal Rake Angle	21.84deg
LU - Usable Length	11.3mm
DC - Cutting Diameter	3.57mm
FHA - Flute Helix Angle	31.940718deg
ULDR - Usable Length Diameter Ratio	3.165266106443
PL - Point Length	0.6mm
LCF - Chip Flute Length	20mm
SIG - Point Angle	140deg
ORDCODE	R846-0357-30-A1A 1220
ADINTMS - Adaptive Interface Machine Direction	M_CYLRD1_F6000_1
CNSC - Coolant Entry Style Code	4
CXSC - Coolant Exit Style Code	4
BMC - Body Material Code	2
CHANGEDATE	2021-12-22 12:15:00.000
STDLET - Standard Letter	HA
STDNO - Standard Number	DIN6535
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1220
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	DIN 6537 K
TCHA - Achievable Hole Tolerance	H9
NOF - Flute Count	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
