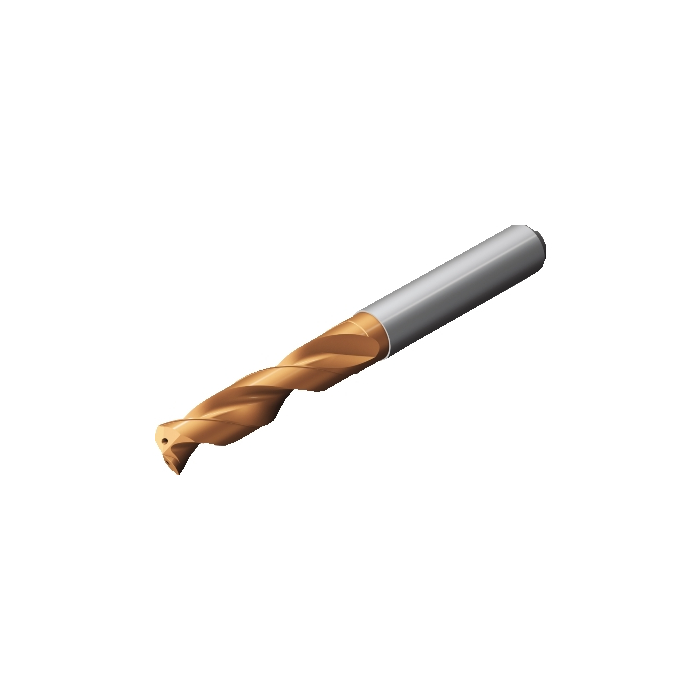

Sandvik Coromant R846-0850-30-A1A 1220 CoroDrill® Delta-C solid carbide drill

Name: Sandvik Coromant R846-0850-30-A1A 1220 CoroDrill® Delta-C solid carbide drill
SKU: 5748743
Price: 2741.60 ZAR
Availability: InStock

Be the first to review this product

R 2 741,60 inc. vat

In stock

SKU

5748743

CoroDrill® Delta-C solid carbide drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® Delta-C solid carbide drill

More Information

More Information
CP - Coolant Pressure	2000000Pa
DCON - Connection Diameter	10mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	87.6mm
BD - Body Diameter	8.5mm
LB - Body Length	49mm
RPMX - Rotational Speed Maximum	18721/min
WT - Weight Of Item	0.077kg
OAL - Overall Length	89mm
OHX - Maximum Overhang	47.5626mm
LSC - Clamping Length	40mm
GAMO - Orthogonal Rake Angle	19.1deg
LU - Usable Length	26.9mm
DC - Cutting Diameter	8.5mm
FHA - Flute Helix Angle	28.105371deg
ULDR - Usable Length Diameter Ratio	3.164705882353
PL - Point Length	1.4mm
LCF - Chip Flute Length	47mm
SIG - Point Angle	140deg
ORDCODE	R846-0850-30-A1A 1220
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_G1000_1
CNSC - Coolant Entry Style Code	4
CXSC - Coolant Exit Style Code	4
BMC - Body Material Code	2
CHANGEDATE	2022-09-12 15:37:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1220
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	DIN 6537 K
TCHA - Achievable Hole Tolerance	H9
NOF - Flute Count	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
