Sandvik Coromant R846-1300-30-A1A 1220 CoroDrill® Delta-C solid carbide drill
Next
Sandvik Coromant R846-1270-30-A1A 1220 CoroDrill® Delta-C solid carbide drill
Previous
![Sandvik Coromant R846-1300-30-A1A 1220 CoroDrill® Delta-C solid carbide drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/7565451fa/sandvik-coromant-r846-1300-30-a1a-1220-corodrillr-delta-c-solid-carbide-drill.jpg)
![Sandvik Coromant R846-1270-30-A1A 1220 CoroDrill® Delta-C solid carbide drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/756528e43/sandvik-coromant-r846-1270-30-a1a-1220-corodrillr-delta-c-solid-carbide-drill.jpg)
R 6 304,30
inc. vat
In stock
SKU
6256417

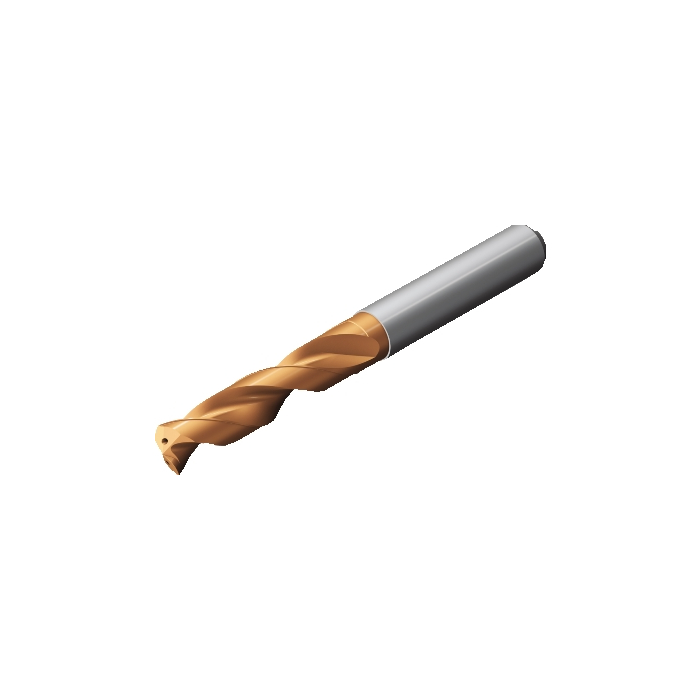

CoroDrill® Delta-C solid carbide drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® Delta-C solid carbide drill
CP - Coolant Pressure | 2000000Pa |
---|---|
DCON - Connection Diameter | 14mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 121.9mm |
BD - Body Diameter | 12.7mm |
LB - Body Length | 79mm |
BHTA - Body Half Taper Angle | 0deg |
RPMX - Rotational Speed Maximum | 12531/min |
WT - Weight Of Item | 195.3g |
OAL - Overall Length | 124mm |
OHX - Maximum Overhang | 76.9mm |
LSC - Clamping Length | 45mm |
GAMO - Orthogonal Rake Angle | 19.73deg |
LU - Usable Length | 61.8mm |
DC - Cutting Diameter | 12.7mm |
FHA - Flute Helix Angle | 29deg |
ULDR - Usable Length Diameter Ratio | 4.866141732283 |
PL - Point Length | 2.1mm |
LCF - Chip Flute Length | 77mm |
SIG - Point Angle | 140deg |
ORDCODE | R846-1270-50-A1A 1220 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLRD1_G1400_1 |
CNSC - Coolant Entry Style Code | 4 |
CXSC - Coolant Exit Style Code | 4 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-12-22 12:16:00.000 |
STDLET - Standard Letter | HA |
STDNO - Standard Number | DIN6535 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1220 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
BSG - Basic Standard Group | DIN 6537 L |
TCHA - Achievable Hole Tolerance | H9 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
