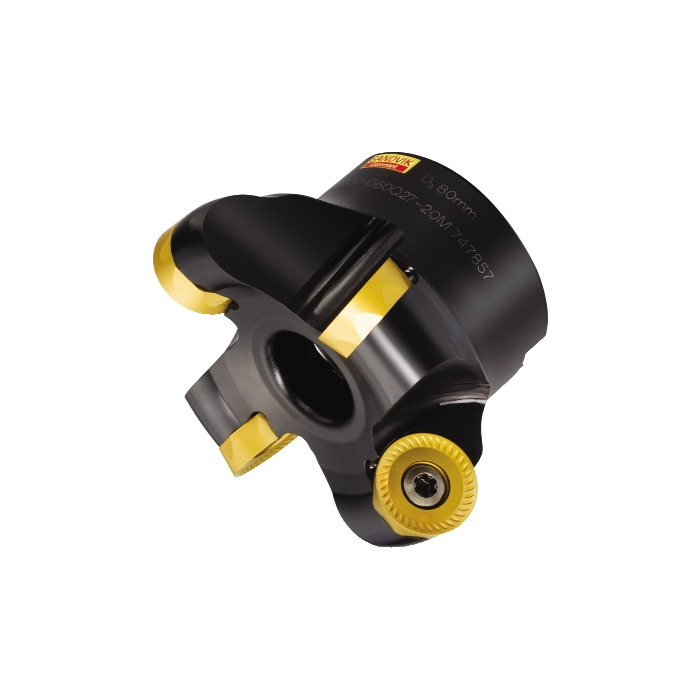

Sandvik Coromant RA200-038R19-13H-HD CoroMill™ 200 face milling cutter

R 8 994,15 inc. vat
Out of stock
SKU
5739065
CoroMill® 200 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 200 face milling cutter
More Information
DCON - Connection Diameter 19.05mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 50mm
BD - Body Diameter 50.8mm
LB - Body Length 50mm
TQ - Torque 3Nm
RPMX - Rotational Speed Maximum 188001/min
WT - Weight Of Item 0.68kg
OAL - Overall Length 50mm
OHX - Maximum Overhang 50mm
RMPX - Maximum Ramping Angle 6deg
GAMO - Orthogonal Rake Angle -4deg
LAMS - Inclination Angle 0deg
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 6.35mm
Insert Thickness 4.7625mm
APMX - Depth Of Cut Maximum 6.35mm
DC - Cutting Diameter 38.1mm
DCF - Cutting Diameter Face Contact 38.1mm
GAMF - Radial Rake Angle 0deg
GAMP - Axial Rake Angle -3.99999989deg
DCX - Maximum Cutting Diameter 50.8mm
AZ - Maximum Plunge Depth 3.5mm
ORDCODE RA200-038R19-13H-HD
ADINTMS - Adaptive Interface Machine Direction M_FDA1A1_R7500_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 2
CHANGEDATE 2022-03-24 01:44:00.000
STDLET - Standard Letter A
STDNO - Standard Number ISO6462
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WISO_RC1304_2
Hand R
MIID - Master Insert Identification RCKT 13 04 00
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code R
SSC - Insert Seat Size Code 13
CICT - Cutting Item Count 5
ZEFP - Peripheral Effective Cutting Edge Count 5
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
