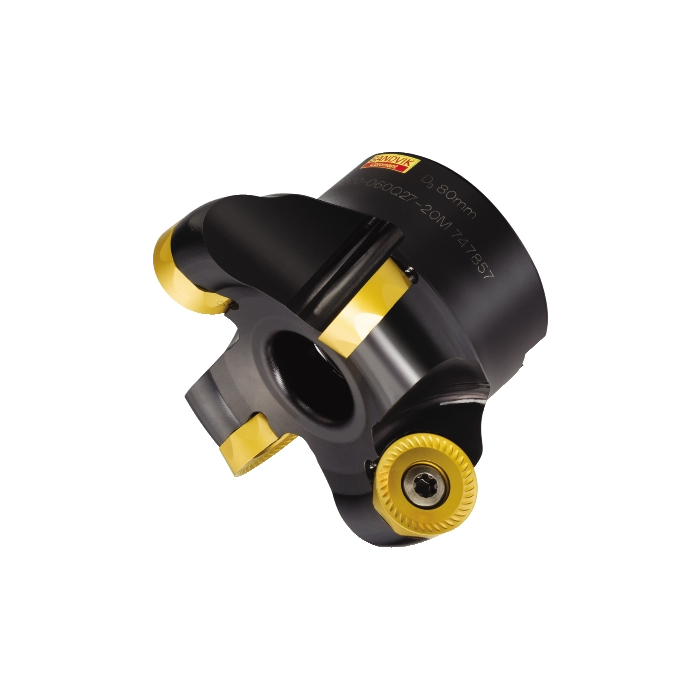

Sandvik Coromant RA200-063R25-13L CoroMill™ 200 face milling cutter

R 11 228,60 inc. vat
In stock
SKU
5739041
CoroMill® 200 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 200 face milling cutter
More Information
DCON - Connection Diameter 25.4mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 50mm
BD - Body Diameter 76.2mm
LB - Body Length 50mm
TQ - Torque 3Nm
RPMX - Rotational Speed Maximum 180001/min
WT - Weight Of Item 1087.5g
OAL - Overall Length 50mm
OHX - Maximum Overhang 50mm
RMPX - Maximum Ramping Angle 3deg
GAMO - Orthogonal Rake Angle -7deg
LAMS - Inclination Angle 0deg
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 6.35mm
Insert Thickness 4.7625mm
APMX - Depth Of Cut Maximum 6.35mm
DC - Cutting Diameter 63.5mm
DCF - Cutting Diameter Face Contact 63.5mm
GAMF - Radial Rake Angle 0deg
GAMP - Axial Rake Angle -6.99999995deg
DCX - Maximum Cutting Diameter 76.2mm
AZ - Maximum Plunge Depth 3.5mm
ORDCODE RA200-063R25-13L
ADINTMS - Adaptive Interface Machine Direction M_FDA1A1_S1000_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-07-05 15:31:00.000
STDLET - Standard Letter A
STDNO - Standard Number ISO6462
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WISO_RC1304_2
Hand R
MIID - Master Insert Identification RCKT 13 04 00
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code R
SSC - Insert Seat Size Code 13
CICT - Cutting Item Count 4
ZEFP - Peripheral Effective Cutting Edge Count 4
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential True
