R 22 460,65
inc. vat
Out of stock
SKU
5738593
CoroMill® 200 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days

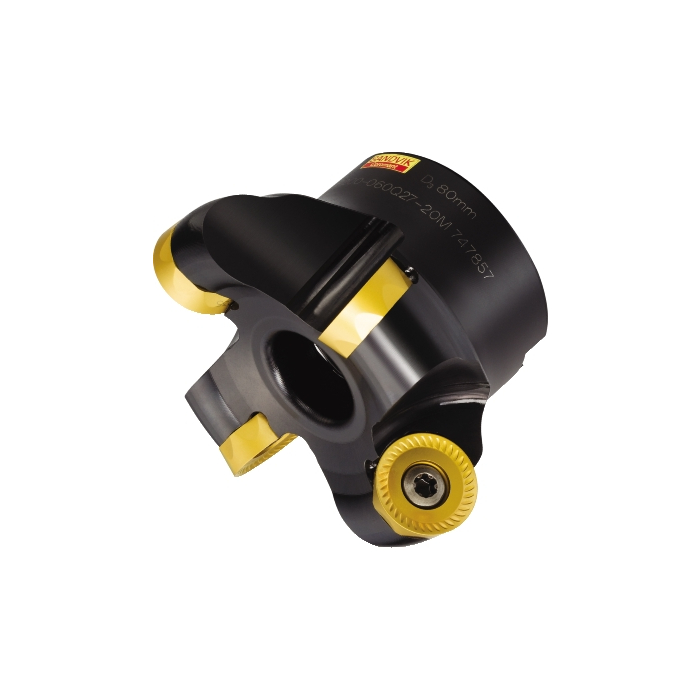

CoroMill® 200 face milling cutter
DCON - Connection Diameter | 38.1mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 63mm |
BD - Body Diameter | 152.4mm |
LB - Body Length | 63mm |
TQ - Torque | 7.5Nm |
RPMX - Rotational Speed Maximum | 69001/min |
WT - Weight Of Item | 3.245kg |
OAL - Overall Length | 63mm |
OHX - Maximum Overhang | 63mm |
RMPX - Maximum Ramping Angle | 2deg |
GAMO - Orthogonal Rake Angle | -7deg |
LAMS - Inclination Angle | 0deg |
AN - Clearance Angle Major | 7deg |
IC - Inscribed Circle Diameter | 19.05mm |
RE - Corner Radius | 9.525mm |
Insert Thickness | 6.35mm |
APMX - Depth Of Cut Maximum | 9.525mm |
DC - Cutting Diameter | 133.35mm |
DCF - Cutting Diameter Face Contact | 133.35mm |
GAMF - Radial Rake Angle | 0deg |
GAMP - Axial Rake Angle | -6.99999995deg |
DCX - Maximum Cutting Diameter | 152.4mm |
AZ - Maximum Plunge Depth | 5.8mm |
ORDCODE | RA200-133R38-19L |
ADINTMS - Adaptive Interface Machine Direction | M_FDA1B1_S1500_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-09-26 13:39:00.000 |
STDLET - Standard Letter | B |
STDNO - Standard Number | ISO6462 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WISO_RC1906_1 |
Hand | R |
MIID - Master Insert Identification | RCKT 19 06 00 |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | R |
SSC - Insert Seat Size Code | 19 |
CICT - Cutting Item Count | 6 |
ZEFP - Peripheral Effective Cutting Edge Count | 6 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | True |
