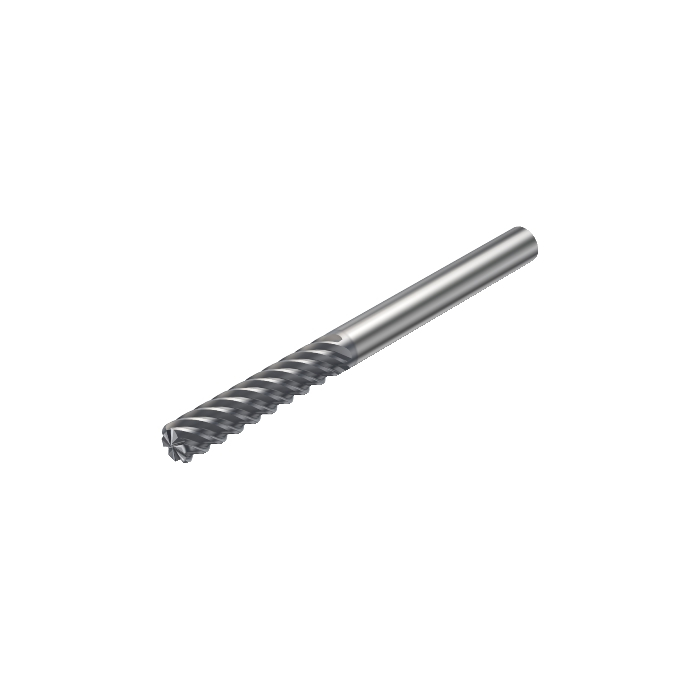

Sandvik Coromant RA215.28-4850DAK36L 1620 CoroMill™ Plura solid carbide end mill for Finishing
Next
Sandvik Coromant RA215.26-4050HAK30L 1620 CoroMill™ Plura solid carbide end mill for Finishing
Previous
![Sandvik Coromant RA215.28-4850DAK36L 1620 CoroMill™ Plura solid carbide end mill for Finishing](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/62523b523/sandvik-coromant-ra215-28-4850dak36l-1620-coromilltm-plura-solid-carbide-end-mill-for-finishing.jpg)
![Sandvik Coromant RA215.26-4050HAK30L 1620 CoroMill™ Plura solid carbide end mill for Finishing](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/625218a11/sandvik-coromant-ra215-26-4050hak30l-1620-coromilltm-plura-solid-carbide-end-mill-for-finishing.jpg)
R 7 906,25
inc. vat
In stock
SKU
5739280
CoroMill® Plura solid carbide end mill for Finishing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Finishing
DCON - Connection Diameter | 15.875mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 139.7mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 360.8g |
OAL - Overall Length | 139.7mm |
OHX - Maximum Overhang | 91.3mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 3deg |
RE - Corner Radius | 3.175mm |
LU - Usable Length | 71.438mm |
APMX - Depth Of Cut Maximum | 71.438mm |
DC - Cutting Diameter | 15.875mm |
DCF - Cutting Diameter Face Contact | 9.525mm |
FHA - Flute Helix Angle | 50deg |
GAMF - Radial Rake Angle | 10.5deg |
GAMP - Axial Rake Angle | 13.5deg |
ULDR - Usable Length Diameter Ratio | 4.500031496063 |
ORDCODE | RA215.26-4050HAL45L 1620 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R6250_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 09:15:00.000 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1620 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 6 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
LOCAP - Location Aid Property | False |
CCC - Center Cutting Capability | False |
CPDF - Cutting Pitch Differential | False |
