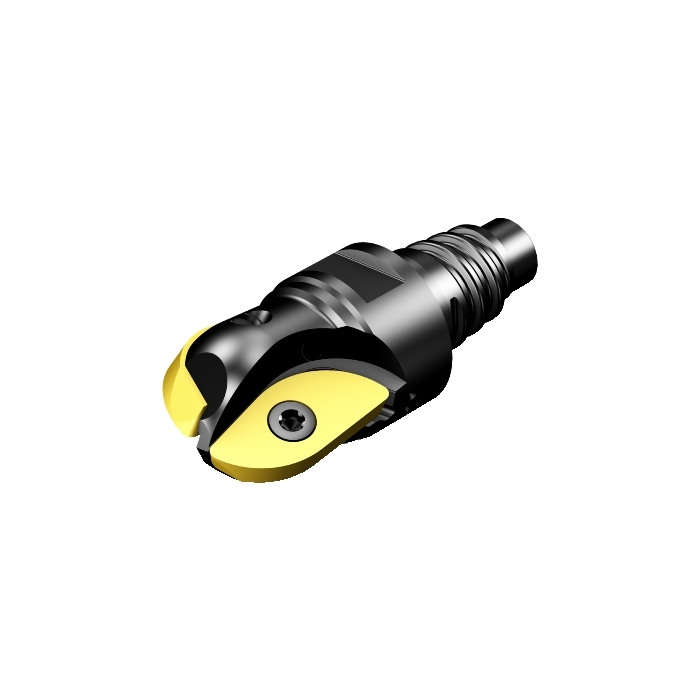

Sandvik Coromant RA216-10EH10 CoroMill™ 216 ball nose milling cutter

Name: Sandvik Coromant RA216-10EH10 CoroMill™ 216 ball nose milling cutter
SKU: 6550052
Price: 6095.00 ZAR
Availability: InStock

R 6 095,00 inc. vat

In stock

SKU

6550052

CoroMill® 216 ball nose milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 216 ball nose milling cutter

More Information
DCON - Connection Diameter	9.25mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	20mm
TQ - Torque	0.6Nm
RPMX - Rotational Speed Maximum	127001/min
WT - Weight Of Item	0.008kg
OAL - Overall Length	31.2mm
OHX - Maximum Overhang	20mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	85deg
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	10deg
AN - Clearance Angle Major	9deg
Insert Thickness	1.7mm
APMX - Depth Of Cut Maximum	7.874mm
DC - Cutting Diameter	9.525mm
DCF - Cutting Diameter Face Contact	0mm
DCX - Maximum Cutting Diameter	9.525mm
AZ - Maximum Plunge Depth	0mm
CEMR - Cutting Edge Major Radius	4.7625mm
PRFRAD - Profile Radius	4.7625mm
ORDCODE	RA216-10EH10
ADINTMS - Adaptive Interface Machine Direction	M_SAT01_B0100_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 15:13:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MQ1002_1
Hand	R
MIID - Master Insert Identification	RA216-10 02
IFS - Insert Mounting Style Code	3
SSC - Insert Seat Size Code	9.525
CICT - Cutting Item Count	2
ZEFP - Peripheral Effective Cutting Edge Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
