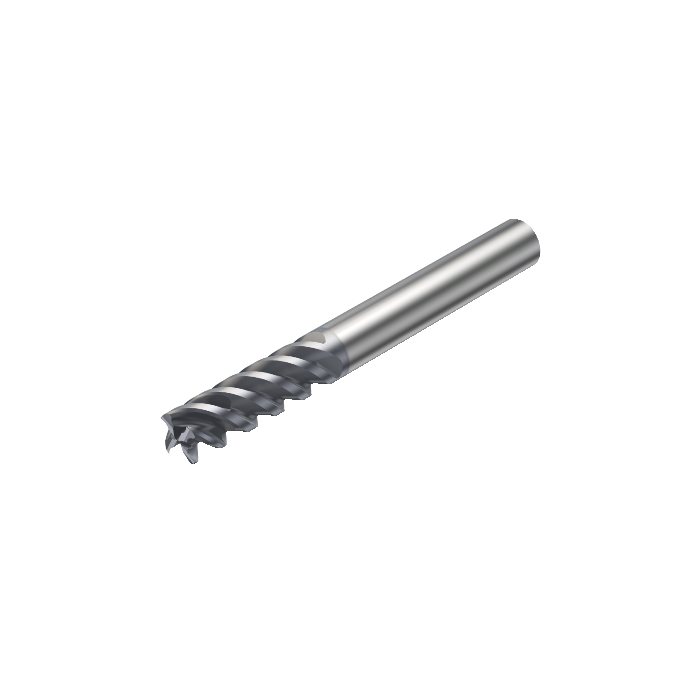

Sandvik Coromant RA216.24-1650BAK12P 1620 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling

Name: Sandvik Coromant RA216.24-1650BAK12P 1620 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling
SKU: 5739476
Price: 1723.85 ZAR
Availability: InStock

Be the first to review this product

R 1 723,85 inc. vat

In stock

SKU

5739476

CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling

More Information

More Information
DCON - Connection Diameter	6.35mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	76.2mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.045kg
OAL - Overall Length	76.2mm
OHX - Maximum Overhang	40.2mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
RE - Corner Radius	0.794mm
LU - Usable Length	19.05mm
APMX - Depth Of Cut Maximum	19.05mm
DC - Cutting Diameter	6.35mm
DCF - Cutting Diameter Face Contact	4.762mm
FHA - Flute Helix Angle	50deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	13.5deg
ULDR - Usable Length Diameter Ratio	3
ORDCODE	RA216.24-1650BAK12P 1620
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R2500_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:01:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1620
COATING	PVD TiAlN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	VFD
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
