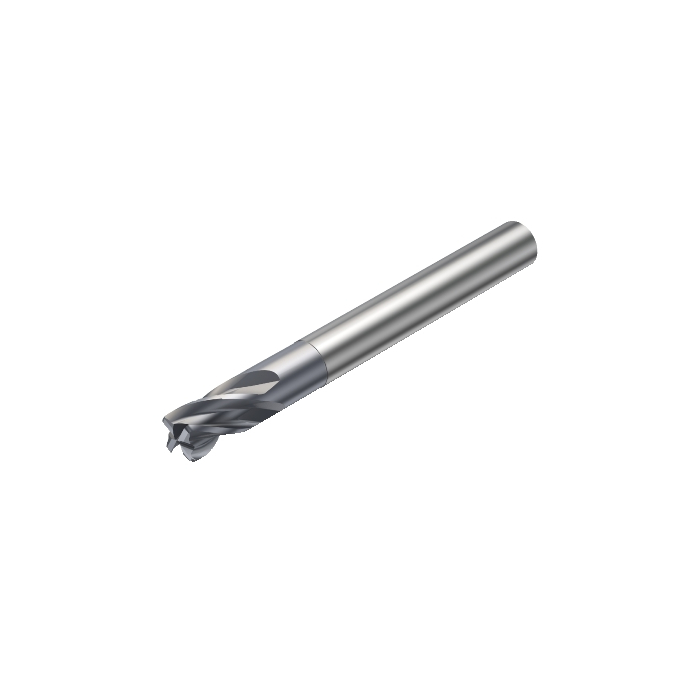

Sandvik Coromant RA216.24-2430DAK06G 1610 CoroMill™ Plura solid carbide end mill for Hard Part Milling

Name: Sandvik Coromant RA216.24-2430DAK06G 1610 CoroMill™ Plura solid carbide end mill for Hard Part Milling
SKU: 5739450
Price: 3069.35 ZAR
Availability: OutOfStock

Be the first to review this product

R 3 069,35 inc. vat

Out of stock

SKU

5739450

CoroMill® Plura solid carbide end mill for Hard Part Milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Hard Part Milling

More Information

More Information
DCON - Connection Diameter	9.525mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	88.9mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.101kg
OAL - Overall Length	88.9mm
OHX - Maximum Overhang	49.2mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	2deg
RE - Corner Radius	1.588mm
LU - Usable Length	31.75mm
APMX - Depth Of Cut Maximum	9.525mm
DC - Cutting Diameter	9.525mm
DCF - Cutting Diameter Face Contact	6.349mm
DN - Neck Diameter	9.37mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	1.5deg
GAMP - Axial Rake Angle	1.5deg
ULDR - Usable Length Diameter Ratio	3.333333333333
ORDCODE	RA216.24-2430DAK06G 1610
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R3750_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 08:53:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1610
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
