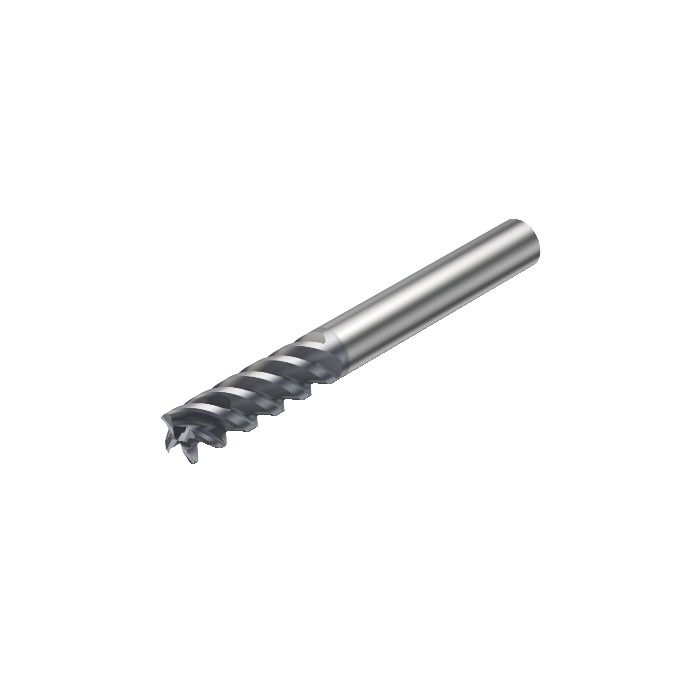

Sandvik Coromant RA216.24-4050BAK20P 1630 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling
R 6 327,30
inc. vat
In stock
SKU
5739990
CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling
DCON - Connection Diameter | 15.875mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 114.3mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.318kg |
OAL - Overall Length | 114.3mm |
OHX - Maximum Overhang | 65.9mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 5deg |
RE - Corner Radius | 0.794mm |
LU - Usable Length | 31.75mm |
APMX - Depth Of Cut Maximum | 31.75mm |
DC - Cutting Diameter | 15.875mm |
DCF - Cutting Diameter Face Contact | 14.287mm |
FHA - Flute Helix Angle | 50deg |
GAMF - Radial Rake Angle | 10.5deg |
GAMP - Axial Rake Angle | 13.5deg |
ULDR - Usable Length Diameter Ratio | 2 |
ORDCODE | RA216.24-4050BAK20P 1630 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R6250_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 09:16:00.000 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1630 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | VFD |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
LOCAP - Location Aid Property | False |
CCC - Center Cutting Capability | True |
CPDF - Cutting Pitch Differential | False |
