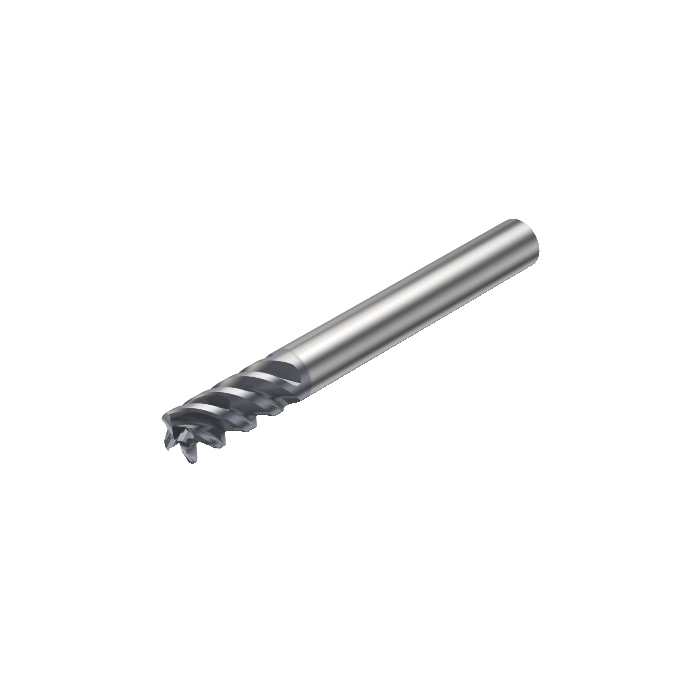

Sandvik Coromant RA216.24-4850DAK24H 1620 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling

Name: Sandvik Coromant RA216.24-4850DAK24H 1620 CoroMill™ Plura solid carbide end mill for Stable Multi-Operations milling
SKU: 5739936
Price: 9815.25 ZAR
Availability: InStock

Be the first to review this product

R 9 815,25 inc. vat

In stock

SKU

5739936

CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide end mill for Stable Multi-Operations milling

More Information

More Information
DCON - Connection Diameter	19.05mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	127mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.505kg
OAL - Overall Length	127mm
OHX - Maximum Overhang	75.4mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
RE - Corner Radius	1.588mm
LU - Usable Length	38.1mm
APMX - Depth Of Cut Maximum	38.1mm
DC - Cutting Diameter	19.05mm
DCF - Cutting Diameter Face Contact	15.874mm
FHA - Flute Helix Angle	50deg
GAMF - Radial Rake Angle	-18.5deg
GAMP - Axial Rake Angle	1.5deg
ULDR - Usable Length Diameter Ratio	2
ORDCODE	RA216.24-4850DAK24H 1620
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R7500_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:16:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1620
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
