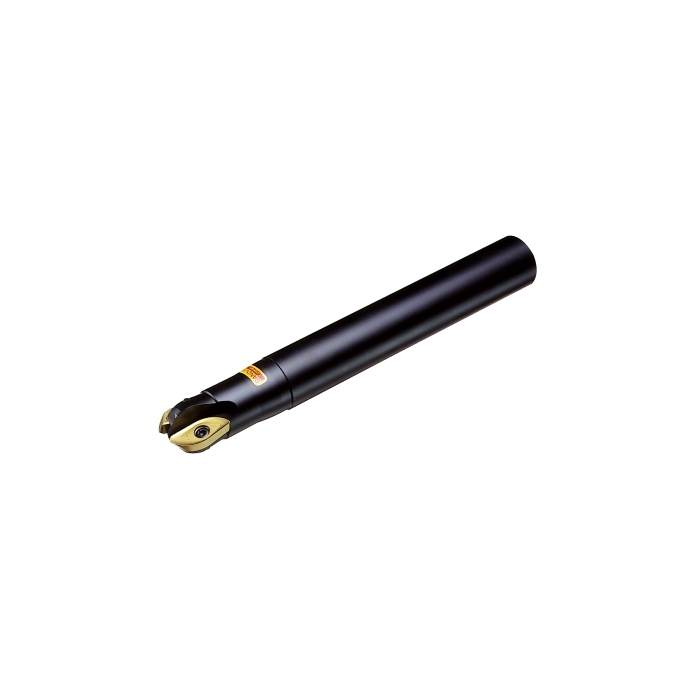

Sandvik Coromant RA216-25O25L-067 CoroMill™ 216 ball nose milling cutter
R 7 747,55
inc. vat
Out of stock
SKU
5740225
CoroMill® 216 ball nose milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 216 ball nose milling cutter
| DCON - Connection Diameter | 25.4mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 304.8mm |
| BD - Body Diameter | 23.6mm |
| LB - Body Length | 66.5mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 3Nm |
| RPMX - Rotational Speed Maximum | 240001/min |
| WT - Weight Of Item | 1kg |
| OAL - Overall Length | 304.8mm |
| OHX - Maximum Overhang | 241.3mm |
| LSC - Clamping Length | 238.3mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| RMPX - Maximum Ramping Angle | 85deg |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 10deg |
| AN - Clearance Angle Major | 9deg |
| Insert Thickness | 4.7625mm |
| LU - Usable Length | 66.5mm |
| APMX - Depth Of Cut Maximum | 23mm |
| DC - Cutting Diameter | 25.4mm |
| DCF - Cutting Diameter Face Contact | 0mm |
| DCX - Maximum Cutting Diameter | 25.4mm |
| AZ - Maximum Plunge Depth | 12.7mm |
| CEMR - Cutting Edge Major Radius | 12.7mm |
| PRFRAD - Profile Radius | 12.7mm |
| ORDCODE | RA216-25O25L-067 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_S1000_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-14 16:07:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MQ2504_1 |
| Hand | R |
| MIID - Master Insert Identification | RA216-25 04 |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 25.4 |
| TCDCON - Connection Diameter Tolerance | h7 |
| CICT - Cutting Item Count | 2 |
| ZEFP - Peripheral Effective Cutting Edge Count | 2 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| LOCAP - Location Aid Property | False |
| CPDF - Cutting Pitch Differential | False |
