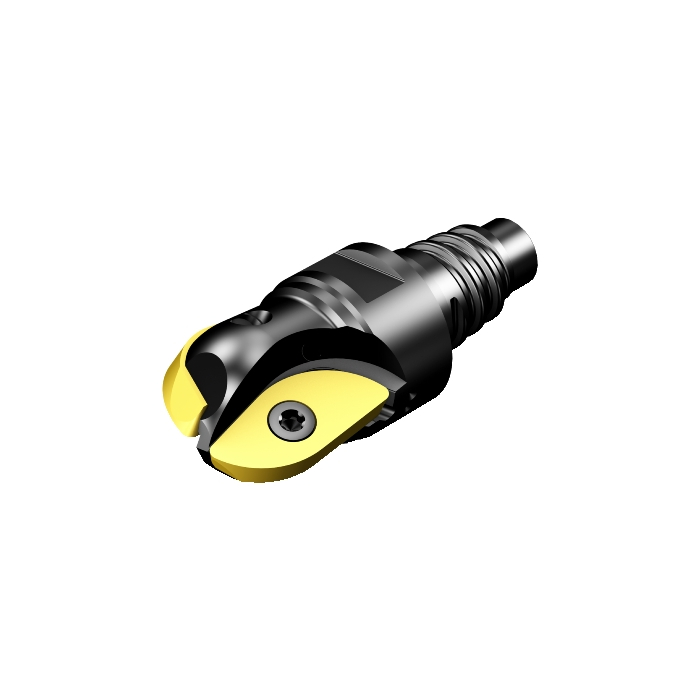

Sandvik Coromant RA216-25EH25 CoroMill™ 216 ball nose milling cutter
Next
Sandvik Coromant R216-20EH20 CoroMill™ 216 ball nose milling cutter
Previous
![Sandvik Coromant RA216-25EH25 CoroMill™ 216 ball nose milling cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/6717521e1/sandvik-coromant-ra216-25eh25-coromilltm-216-ball-nose-milling-cutter.jpg)
![Sandvik Coromant R216-20EH20 CoroMill™ 216 ball nose milling cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/671679011/sandvik-coromant-r216-20eh20-coromilltm-216-ball-nose-milling-cutter.jpg)
R 9 339,15
inc. vat
In stock
SKU
6550057
CoroMill® 216 ball nose milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 216 ball nose milling cutter
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 24.5mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 50mm |
TQ - Torque | 5Nm |
RPMX - Rotational Speed Maximum | 127001/min |
WT - Weight Of Item | 0.239kg |
OAL - Overall Length | 74mm |
OHX - Maximum Overhang | 50mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 85deg |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | 10deg |
AN - Clearance Angle Major | 9deg |
Insert Thickness | 6.35mm |
APMX - Depth Of Cut Maximum | 28.2956mm |
DC - Cutting Diameter | 31.75mm |
DCF - Cutting Diameter Face Contact | 0mm |
DCX - Maximum Cutting Diameter | 31.75mm |
AZ - Maximum Plunge Depth | 0mm |
CEMR - Cutting Edge Major Radius | 15.875mm |
PRFRAD - Profile Radius | 15.875mm |
ORDCODE | RA216-32EH25 |
ADINTMS - Adaptive Interface Machine Direction | M_SAT01_B0250_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 15:13:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MQ3206_1 |
Hand | R |
MIID - Master Insert Identification | RA216-32 06 |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 31.75 |
CICT - Cutting Item Count | 2 |
ZEFP - Peripheral Effective Cutting Edge Count | 2 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
