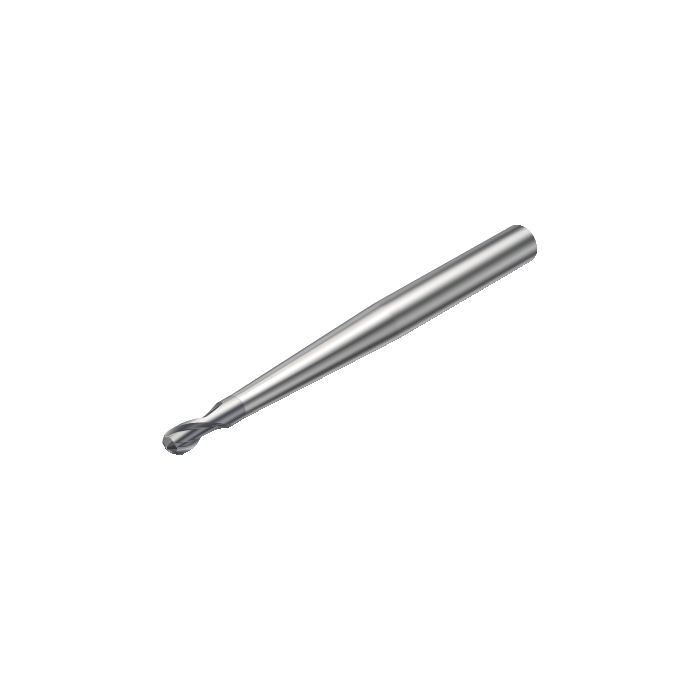

Sandvik Coromant RA216.42-0830-AL03G 1620 CoroMill™ Plura solid carbide ball nose end mill for Profiling
R 1 657,15
inc. vat
Out of stock
SKU
5739647
CoroMill® Plura solid carbide ball nose end mill for Profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide ball nose end mill for Profiling
DCON - Connection Diameter | 6.35mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 101.6mm |
BD - Body Diameter | 3.175mm |
LB - Body Length | 40.6mm |
BHTA - Body Half Taper Angle | 2.5deg |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.052kg |
OAL - Overall Length | 101.6mm |
OHX - Maximum Overhang | 65.6mm |
RMPX - Maximum Ramping Angle | 3deg |
RE - Corner Radius | 1.5875mm |
LU - Usable Length | 3.175mm |
APMX - Depth Of Cut Maximum | 3.175mm |
DC - Cutting Diameter | 3.175mm |
FHA - Flute Helix Angle | 30deg |
GAMF - Radial Rake Angle | 1.5deg |
GAMP - Axial Rake Angle | 1.5deg |
PSIR - Tool Lead Angle | 0deg |
ULDR - Usable Length Diameter Ratio | 1 |
ORDCODE | RA216.42-0830-AL03G 1620 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R2500_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-12-21 03:57:00.000 |
Hand | R |
TCDCON - Connection Diameter Tolerance | h6 |
Grade | 1620 |
COATING | PVD TiAlN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | STRAIGHT |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 2 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
LOCAP - Location Aid Property | False |
CPDF - Cutting Pitch Differential | False |
