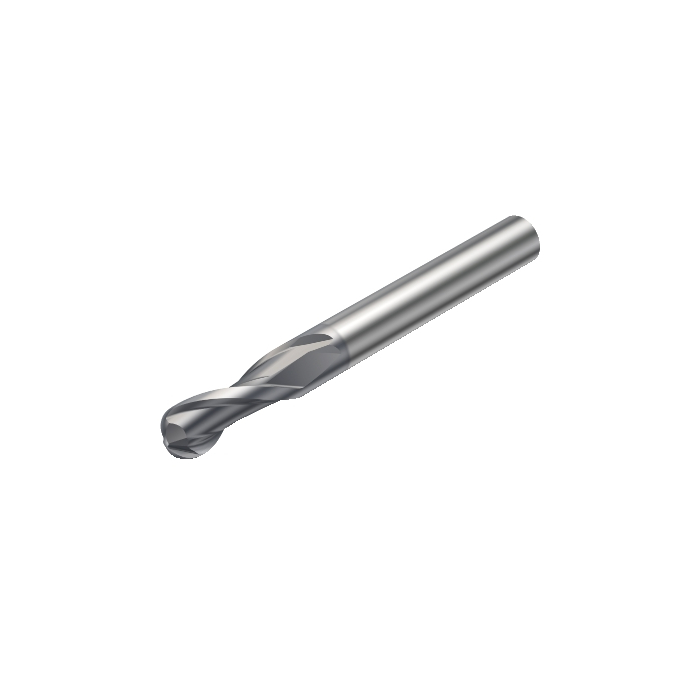

Sandvik Coromant RA216.42-1230-AK06G 1610 CoroMill™ Plura solid carbide ball nose end mill for Profiling
R 2 099,90
inc. vat
In stock
SKU
5739660
CoroMill® Plura solid carbide ball nose end mill for Profiling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® Plura solid carbide ball nose end mill for Profiling
| DCON - Connection Diameter | 6.35mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 76.2mm |
| BD - Body Diameter | 4.76mm |
| LB - Body Length | 20.4mm |
| BHTA - Body Half Taper Angle | 30deg |
| RPMX - Rotational Speed Maximum | 800001/min |
| WT - Weight Of Item | 0.044kg |
| OAL - Overall Length | 76.2mm |
| OHX - Maximum Overhang | 40.2mm |
| RMPX - Maximum Ramping Angle | 15deg |
| RE - Corner Radius | 2.38mm |
| LU - Usable Length | 9.525mm |
| APMX - Depth Of Cut Maximum | 9.525mm |
| DC - Cutting Diameter | 4.76mm |
| FHA - Flute Helix Angle | 30deg |
| GAMF - Radial Rake Angle | -5.5deg |
| GAMP - Axial Rake Angle | 1.5deg |
| PSIR - Tool Lead Angle | 0deg |
| ULDR - Usable Length Diameter Ratio | 2.001050420168 |
| ORDCODE | RA216.42-1230-AK06G 1610 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_R2500_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-03-07 14:39:00.000 |
| Hand | R |
| TCDCON - Connection Diameter Tolerance | h6 |
| Grade | 1610 |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | STRAIGHT |
| BSG - Basic Standard Group | COROMANT |
| ZEFP - Peripheral Effective Cutting Edge Count | 2 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| LOCAP - Location Aid Property | False |
| CPDF - Cutting Pitch Differential | False |
