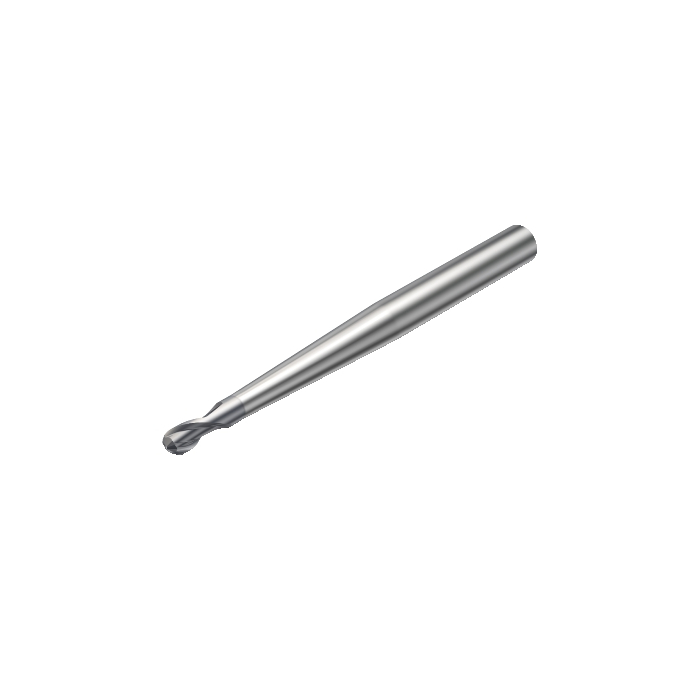

Sandvik Coromant RA216.42-1630-AL06G 1620 CoroMill™ Plura solid carbide ball nose end mill for Profiling

Name: Sandvik Coromant RA216.42-1630-AL06G 1620 CoroMill™ Plura solid carbide ball nose end mill for Profiling
SKU: 5739620
Price: 1909.00 ZAR
Availability: InStock

Be the first to review this product

R 1 909,00 inc. vat

In stock

SKU

5739620

CoroMill® Plura solid carbide ball nose end mill for Profiling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® Plura solid carbide ball nose end mill for Profiling

More Information

More Information
DCON - Connection Diameter	9.525mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	114.3mm
BD - Body Diameter	6.35mm
LB - Body Length	45.3mm
BHTA - Body Half Taper Angle	2.5deg
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	116.4g
OAL - Overall Length	114.3mm
OHX - Maximum Overhang	74.6mm
RMPX - Maximum Ramping Angle	3deg
RE - Corner Radius	3.175mm
LU - Usable Length	6.35mm
APMX - Depth Of Cut Maximum	6.35mm
DC - Cutting Diameter	6.35mm
FHA - Flute Helix Angle	30deg
GAMF - Radial Rake Angle	1.5deg
GAMP - Axial Rake Angle	1.5deg
PSIR - Tool Lead Angle	0deg
ULDR - Usable Length Diameter Ratio	1
ORDCODE	RA216.42-1630-AL06G 1620
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_R3750_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2021-12-21 03:57:00.000
Hand	R
TCDCON - Connection Diameter Tolerance	h6
Grade	1620
COATING	PVD TiAlN
SUBSTRATE	HC
CBMD - Chip Breaker Manufacturer's Designation	STRAIGHT
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	2
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CPDF - Cutting Pitch Differential	False
