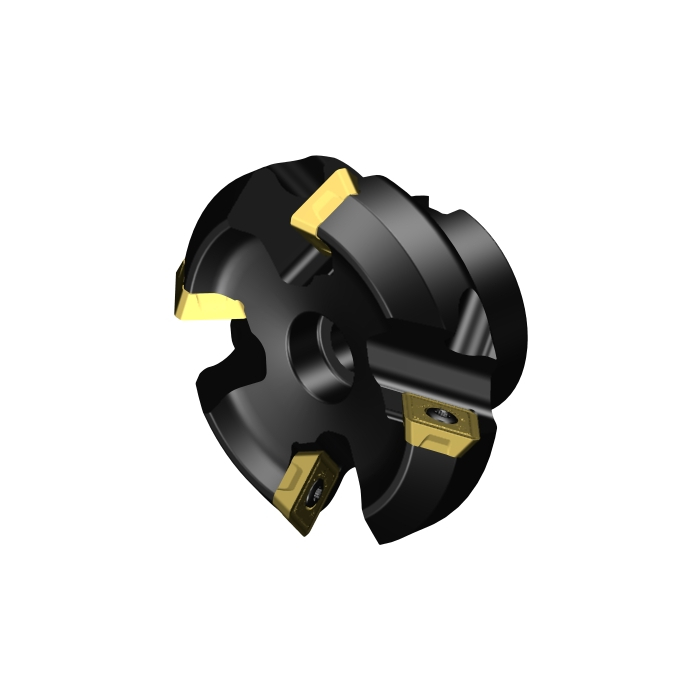

Sandvik Coromant RA245-080J25.4-12H CoroMill™ 245 face milling cutter
Next
Sandvik Coromant RA300-025M25-09H CoroMill™ 300 face milling cutter
Previous
![Sandvik Coromant RA245-080J25.4-12H CoroMill™ 245 face milling cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/62651b240/sandvik-coromant-ra245-080j25-4-12h-coromilltm-245-face-milling-cutter.jpg)
![Sandvik Coromant RA300-025M25-09H CoroMill™ 300 face milling cutter](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/6261449ae/sandvik-coromant-ra300-025m25-09h-coromilltm-300-face-milling-cutter.jpg)
R 8 188,00
inc. vat
In stock
SKU
5739697
CoroMill® 245 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 245 face milling cutter
DCON - Connection Diameter | 25.4mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 50mm |
TQ - Torque | 5Nm |
RPMX - Rotational Speed Maximum | 63001/min |
WT - Weight Of Item | 1.027kg |
OAL - Overall Length | 50mm |
OHX - Maximum Overhang | 50mm |
KAPR - Tool Cutting Edge Angle | 45deg |
RMPX - Maximum Ramping Angle | 0deg |
GAMO - Orthogonal Rake Angle | 4.2deg |
LAMS - Inclination Angle | 18deg |
AN - Clearance Angle Major | 20deg |
IC - Inscribed Circle Diameter | 18mm |
Insert Thickness | 6.1mm |
APMX - Depth Of Cut Maximum | 9.99998mm |
DC - Cutting Diameter | 76.2mm |
DCF - Cutting Diameter Face Contact | 76.2mm |
GAMF - Radial Rake Angle | -10.08328994deg |
GAMP - Axial Rake Angle | 15.73144519deg |
DCX - Maximum Cutting Diameter | 95.0011mm |
AZ - Maximum Plunge Depth | 0mm |
ORDCODE | RA245-076R25-18M |
ADINTMS - Adaptive Interface Machine Direction | M_FDA1B1_S1000_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-05-04 11:45:00.000 |
STDLET - Standard Letter | B |
STDNO - Standard Number | ISO6462 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MB18T6_1 |
Hand | R |
MIID - Master Insert Identification | R245-18T6.. |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 18 |
CICT - Cutting Item Count | 4 |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | True |
