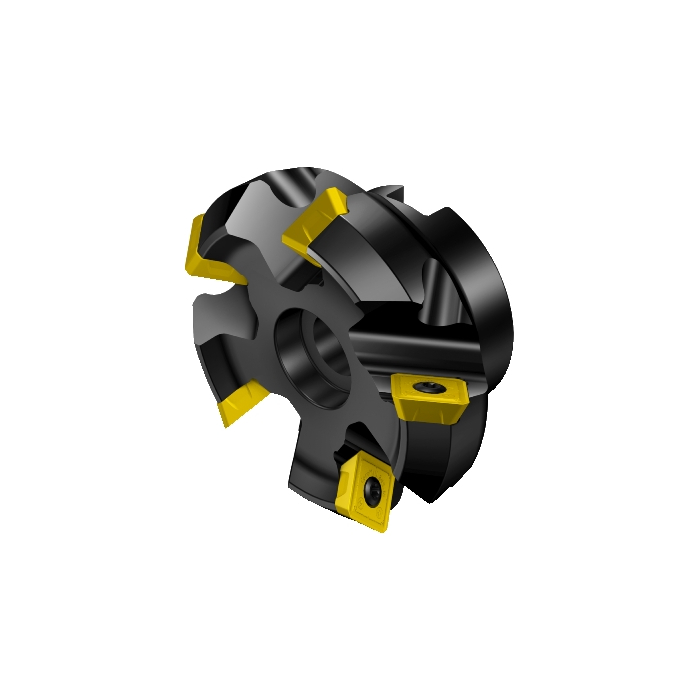

Sandvik Coromant RA245-203R63-12H CoroMill™ 245 face milling cutter

Name: Sandvik Coromant RA245-203R63-12H CoroMill™ 245 face milling cutter
SKU: 5739923
Price: 36939.15 ZAR
Availability: InStock

R 36 939,15 inc. vat

In stock

SKU

5739923

CoroMill® 245 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 245 face milling cutter

More Information
DCON - Connection Diameter	63.5mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	63mm
TQ - Torque	3Nm
RPMX - Rotational Speed Maximum	79501/min
WT - Weight Of Item	10.43kg
OAL - Overall Length	63mm
OHX - Maximum Overhang	63mm
DBC - Diameter Bolt Circle	101.6mm
KAPR - Tool Cutting Edge Angle	45deg
RMPX - Maximum Ramping Angle	0deg
GAMO - Orthogonal Rake Angle	9.3deg
LAMS - Inclination Angle	23deg
AN - Clearance Angle Major	20deg
IC - Inscribed Circle Diameter	13.4mm
Insert Thickness	3.96875mm
APMX - Depth Of Cut Maximum	6.096mm
DC - Cutting Diameter	203.2mm
DCF - Cutting Diameter Face Contact	203.2mm
GAMF - Radial Rake Angle	-10.44552815deg
GAMP - Axial Rake Angle	22.58448729deg
DCX - Maximum Cutting Diameter	215.6968mm
AZ - Maximum Plunge Depth	0mm
ORDCODE	RA245-203R63-12H
ADINTMS - Adaptive Interface Machine Direction	M_FDA1C4_S2500_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-05-04 11:46:00.000
STDLET - Standard Letter	C
STDNO - Standard Number	ISO6462
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MB12T3_1
Hand	R
MIID - Master Insert Identification	R245-12T3..
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	12
CICT - Cutting Item Count	20
ZEFP - Peripheral Effective Cutting Edge Count	20
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
