Sandvik Coromant RA300-019M25-10L CoroMill™ 300 face milling cutter
R 4 349,30
inc. vat
In stock
SKU
5739533
CoroMill® 300 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days

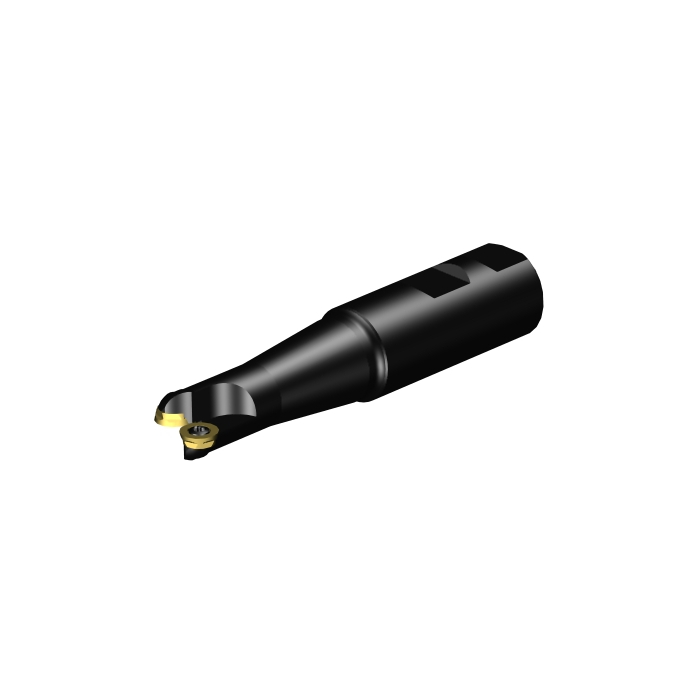

CoroMill® 300 face milling cutter
| DCON - Connection Diameter | 25.4mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 121.44mm |
| BD - Body Diameter | 17.15mm |
| LB - Body Length | 30mm |
| TQ - Torque | 3Nm |
| RPMX - Rotational Speed Maximum | 359001/min |
| WT - Weight Of Item | 345g |
| OAL - Overall Length | 121.44mm |
| OHX - Maximum Overhang | 63.5mm |
| LSC - Clamping Length | 57.94mm |
| RMPX - Maximum Ramping Angle | 20deg |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 0deg |
| AN - Clearance Angle Major | 15deg |
| IC - Inscribed Circle Diameter | 10mm |
| RE - Corner Radius | 5mm |
| Insert Thickness | 3.175mm |
| H - Shank Height | 23.5mm |
| LU - Usable Length | 39.1mm |
| MHD - Mounting Hole Distance | 28.971875mm |
| APMX - Depth Of Cut Maximum | 5mm |
| DC - Cutting Diameter | 9.05mm |
| DCF - Cutting Diameter Face Contact | 9.05mm |
| GAMF - Radial Rake Angle | 0deg |
| GAMP - Axial Rake Angle | 0deg |
| DCX - Maximum Cutting Diameter | 19.05mm |
| AZ - Maximum Plunge Depth | 2.8mm |
| ORDCODE | RA300-019M25-10L |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLW_S1000_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-18 15:38:00.000 |
| STDLET - Standard Letter | HB |
| STDNO - Standard Number | DIN6535 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MD1032_1 |
| Hand | R |
| MIID - Master Insert Identification | R300-1032.. |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 10 |
| TCDCON - Connection Diameter Tolerance | h6 |
| CICT - Cutting Item Count | 2 |
| ZEFP - Peripheral Effective Cutting Edge Count | 2 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | False |
