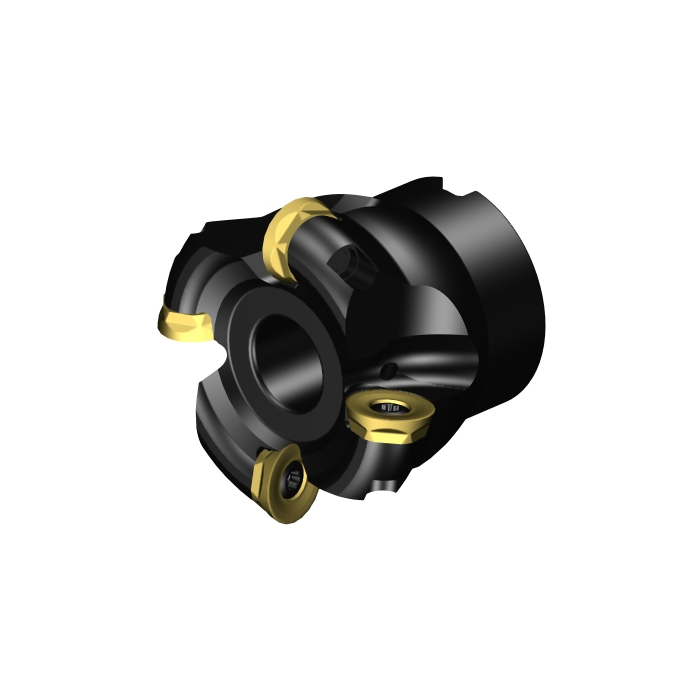

Sandvik Coromant RA300-063R19-16M CoroMill™ 300 face milling cutter

R 9 133,30 inc. vat
In stock
SKU
5738740
CoroMill® 300 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 300 face milling cutter
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 19.05mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 50mm
TQ - Torque 5Nm
RPMX - Rotational Speed Maximum 182001/min
WT - Weight Of Item 491g
OAL - Overall Length 50mm
OHX - Maximum Overhang 50mm
RMPX - Maximum Ramping Angle 5deg
GAMO - Orthogonal Rake Angle 7deg
LAMS - Inclination Angle 0deg
AN - Clearance Angle Major 15deg
IC - Inscribed Circle Diameter 16mm
RE - Corner Radius 8mm
Insert Thickness 4.7625mm
APMX - Depth Of Cut Maximum 8mm
DC - Cutting Diameter 47.5mm
DCF - Cutting Diameter Face Contact 47.5mm
GAMF - Radial Rake Angle 0deg
GAMP - Axial Rake Angle 6.99999995deg
DCX - Maximum Cutting Diameter 63.5mm
AZ - Maximum Plunge Depth 3.8mm
ORDCODE RA300-063R19-16M
ADINTMS - Adaptive Interface Machine Direction M_FDA1A1_R7500_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-07-05 15:31:00.000
STDLET - Standard Letter A
STDNO - Standard Number ISO6462
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MD1648_1
Hand R
MIID - Master Insert Identification R300-1648..
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code R
SSC - Insert Seat Size Code 16
CICT - Cutting Item Count 4
ZEFP - Peripheral Effective Cutting Edge Count 4
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential True
