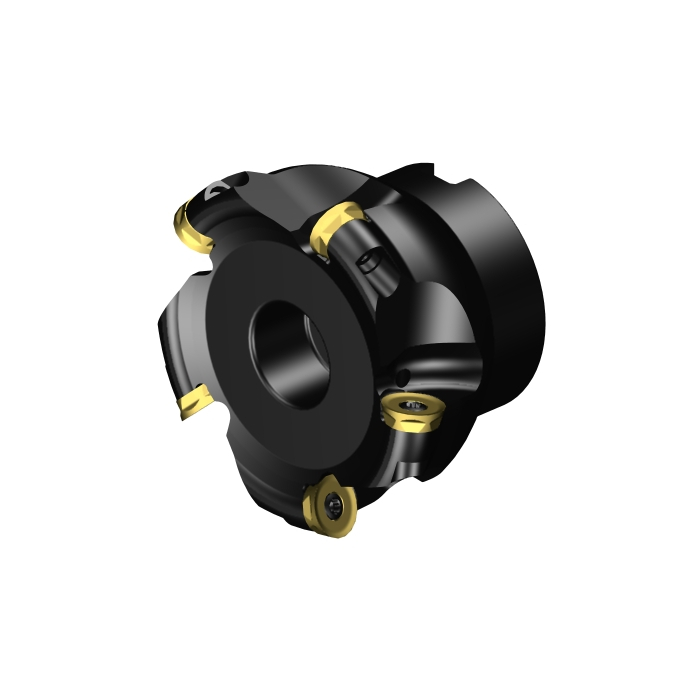

Sandvik Coromant RA300-076R25-13M CoroMill™ 300 face milling cutter
Next
Sandvik Coromant RA300-076R25-13H CoroMill™ 300 face milling cutter
Previous
R 10 873,25
inc. vat
In stock
SKU
5739463
CoroMill® 300 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 300 face milling cutter
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 25.4mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 50mm |
TQ - Torque | 3Nm |
RPMX - Rotational Speed Maximum | 135001/min |
WT - Weight Of Item | 0.805kg |
OAL - Overall Length | 50mm |
OHX - Maximum Overhang | 50mm |
RMPX - Maximum Ramping Angle | 2.7deg |
GAMO - Orthogonal Rake Angle | 7deg |
LAMS - Inclination Angle | 0deg |
AN - Clearance Angle Major | 15deg |
IC - Inscribed Circle Diameter | 12.7mm |
RE - Corner Radius | 6.35mm |
Insert Thickness | 3.96875mm |
APMX - Depth Of Cut Maximum | 6.3mm |
DC - Cutting Diameter | 63.5mm |
DCF - Cutting Diameter Face Contact | 63.5mm |
GAMF - Radial Rake Angle | 0deg |
GAMP - Axial Rake Angle | 6.99999995deg |
DCX - Maximum Cutting Diameter | 76.2mm |
AZ - Maximum Plunge Depth | 2.8mm |
ORDCODE | RA300-076R25-13L |
ADINTMS - Adaptive Interface Machine Direction | M_FDA1A1_S1000_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-07-05 15:31:00.000 |
STDLET - Standard Letter | A |
STDNO - Standard Number | ISO6462 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MD1340_1 |
Hand | R |
MIID - Master Insert Identification | R300-1340.. |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | R |
SSC - Insert Seat Size Code | 13 |
CICT - Cutting Item Count | 5 |
ZEFP - Peripheral Effective Cutting Edge Count | 5 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | True |
