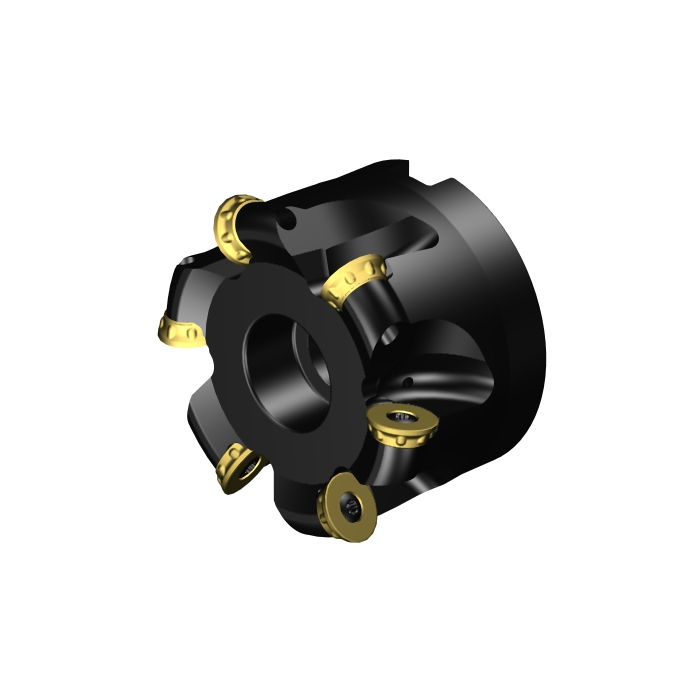

Sandvik Coromant RA300-102R38-20M CoroMill™ 300 face milling cutter

Name: Sandvik Coromant RA300-102R38-20M CoroMill™ 300 face milling cutter
SKU: 5740080
Price: 13265.25 ZAR
Availability: InStock

R 13 265,25 inc. vat

In stock

SKU

5740080

CoroMill® 300 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 300 face milling cutter

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	38.1mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	63mm
TQ - Torque	7.5Nm
RPMX - Rotational Speed Maximum	126721/min
WT - Weight Of Item	2.043kg
OAL - Overall Length	63mm
OHX - Maximum Overhang	63mm
RMPX - Maximum Ramping Angle	4.7deg
GAMO - Orthogonal Rake Angle	7deg
LAMS - Inclination Angle	-2deg
AN - Clearance Angle Major	15deg
IC - Inscribed Circle Diameter	20mm
RE - Corner Radius	10mm
Insert Thickness	6.48mm
APMX - Depth Of Cut Maximum	10mm
DC - Cutting Diameter	81.6mm
DCF - Cutting Diameter Face Contact	81.6mm
GAMF - Radial Rake Angle	2.00000003deg
GAMP - Axial Rake Angle	6.99999995deg
DCX - Maximum Cutting Diameter	101.6mm
AZ - Maximum Plunge Depth	6mm
ORDCODE	RA300-102R38-20M
ADINTMS - Adaptive Interface Machine Direction	M_FDA1A1_S1500_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-09-26 13:43:00.000
STDLET - Standard Letter	A
STDNO - Standard Number	ISO6462
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MD2060_1
Hand	R
MIID - Master Insert Identification	R300-2060..
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	R
SSC - Insert Seat Size Code	20
CICT - Cutting Item Count	6
ZEFP - Peripheral Effective Cutting Edge Count	6
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	True
