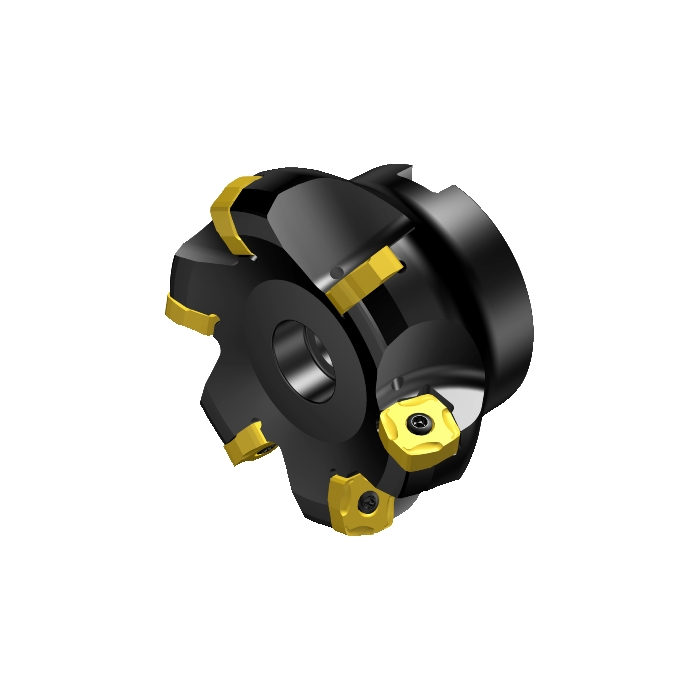

Sandvik Coromant RA365-100J31-S15H CoroMill™ 365 face milling cutter

Name: Sandvik Coromant RA365-100J31-S15H CoroMill™ 365 face milling cutter
SKU: 5740317
Price: 15315.70 ZAR
Availability: InStock

R 15 315,70 inc. vat

In stock

SKU

5740317

CoroMill® 365 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 365 face milling cutter

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	31.75mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	63mm
TQ - Torque	3Nm
RPMX - Rotational Speed Maximum	99001/min
WT - Weight Of Item	2.76kg
OAL - Overall Length	63mm
OHX - Maximum Overhang	63mm
KAPR - Tool Cutting Edge Angle	65deg
RMPX - Maximum Ramping Angle	0deg
GAMO - Orthogonal Rake Angle	-9.5deg
LAMS - Inclination Angle	-7deg
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	15mm
Insert Thickness	5.66mm
APMX - Depth Of Cut Maximum	6mm
DC - Cutting Diameter	100mm
DCF - Cutting Diameter Face Contact	100mm
GAMF - Radial Rake Angle	-5.6977106deg
GAMP - Axial Rake Angle	-10.31507694deg
DCX - Maximum Cutting Diameter	106.7mm
AZ - Maximum Plunge Depth	0mm
ORDCODE	RA365-100J31-S15H
ADINTMS - Adaptive Interface Machine Direction	M_FDACA1_S1250_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
BMC - Body Material Code	1
CHANGEDATE	2022-03-24 01:55:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MG1505_2
Hand	R
MIID - Master Insert Identification	R365-1505ZNE
IFS - Insert Mounting Style Code	3
SSC - Insert Seat Size Code	15
CICT - Cutting Item Count	10
ZEFP - Peripheral Effective Cutting Edge Count	10
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
