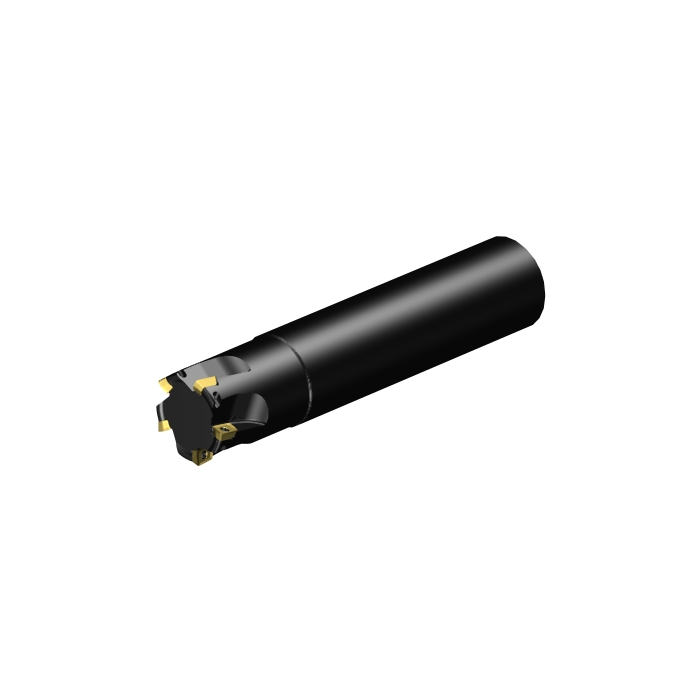

Sandvik Coromant RA390-025O25-07M CoroMill™ 390 square shoulder milling cutter

R 6 249,10 inc. vat
In stock
SKU
6851134
CoroMill® 390 square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 390 square shoulder milling cutter
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 25.4mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 120mm
BD - Body Diameter 24.4mm
LB - Body Length 32mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 0.5Nm
RPMX - Rotational Speed Maximum 280001/min
WT - Weight Of Item 0.425kg
OAL - Overall Length 120mm
OHX - Maximum Overhang 62.06mm
LSC - Clamping Length 87.3mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 1.4deg
OHN - Minimum Overhang 32.7mm
GAMO - Orthogonal Rake Angle 20deg
LAMS - Inclination Angle 10deg
AN - Clearance Angle Major 18deg
Insert Thickness 2.4mm
LU - Usable Length 32mm
L - Cutting Edge Length 6.92mm
APMX - Depth Of Cut Maximum 5.8mm
W1 - Insert Width 4.06mm
DC - Cutting Diameter 25.4mm
DCF - Cutting Diameter Face Contact 24.6mm
GAMF - Radial Rake Angle 19.99999978deg
GAMP - Axial Rake Angle 9.99999996deg
AZ - Maximum Plunge Depth 0.5mm
ORDCODE RA390-025O25-07M
ADINTMS - Adaptive Interface Machine Direction M_CYLR_S1000_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 16:27:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MH0702_1
Hand R
MIID - Master Insert Identification 390R-07..
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code L
SSC - Insert Seat Size Code 07
TCDCON - Connection Diameter Tolerance h6
CICT - Cutting Item Count 5
ZEFP - Peripheral Effective Cutting Edge Count 5
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
CPDF - Cutting Pitch Differential True
