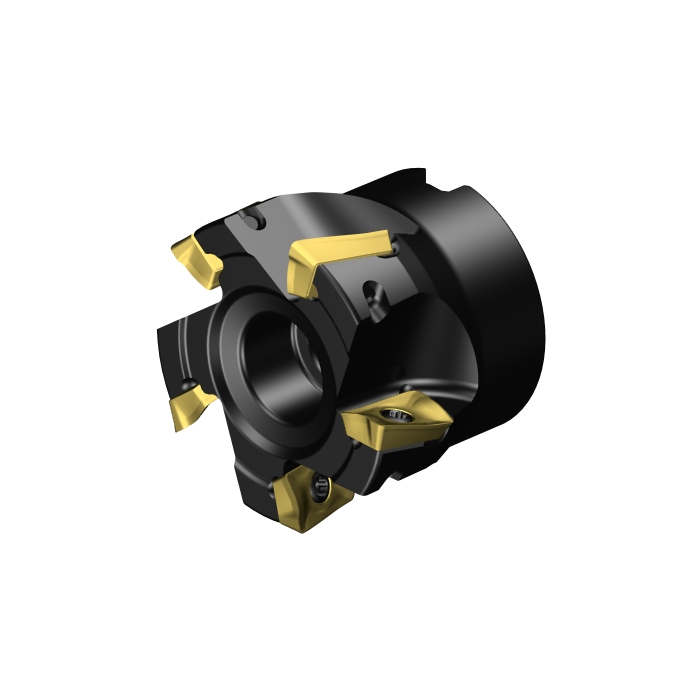

Sandvik Coromant RA390-051R19-17H CoroMill™ 390 square shoulder milling cutter

Name: Sandvik Coromant RA390-051R19-17H CoroMill™ 390 square shoulder milling cutter
SKU: 5739652
Price: 8529.55 ZAR
Availability: InStock

Be the first to review this product

R 8 529,55 inc. vat

In stock

SKU

5739652

CoroMill® 390 square shoulder milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 390 square shoulder milling cutter

More Information

More Information
DCON - Connection Diameter	19.05mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	40.005mm
TQ - Torque	3Nm
RPMX - Rotational Speed Maximum	188001/min
WT - Weight Of Item	0.291kg
OAL - Overall Length	40.005mm
OHX - Maximum Overhang	40.005mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	2.7deg
GAMO - Orthogonal Rake Angle	-4.774deg
LAMS - Inclination Angle	16.78deg
AN - Clearance Angle Major	19deg
Insert Thickness	4.7625mm
L - Cutting Edge Length	17.45mm
APMX - Depth Of Cut Maximum	15.7mm
W1 - Insert Width	9.6mm
DC - Cutting Diameter	50.8mm
DCF - Cutting Diameter Face Contact	49.2mm
GAMF - Radial Rake Angle	-4.77400011deg
GAMP - Axial Rake Angle	16.78000022deg
AZ - Maximum Plunge Depth	1.5mm
ORDCODE	RA390-051R19-17H
ADINTMS - Adaptive Interface Machine Direction	M_FDA1A1_R7500_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 14:44:00.000
STDLET - Standard Letter	A
STDNO - Standard Number	ISO6462
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_MH1704_1
Hand	R
MIID - Master Insert Identification	R390-17..
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	L
SSC - Insert Seat Size Code	17
CICT - Cutting Item Count	5
ZEFP - Peripheral Effective Cutting Edge Count	5
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
