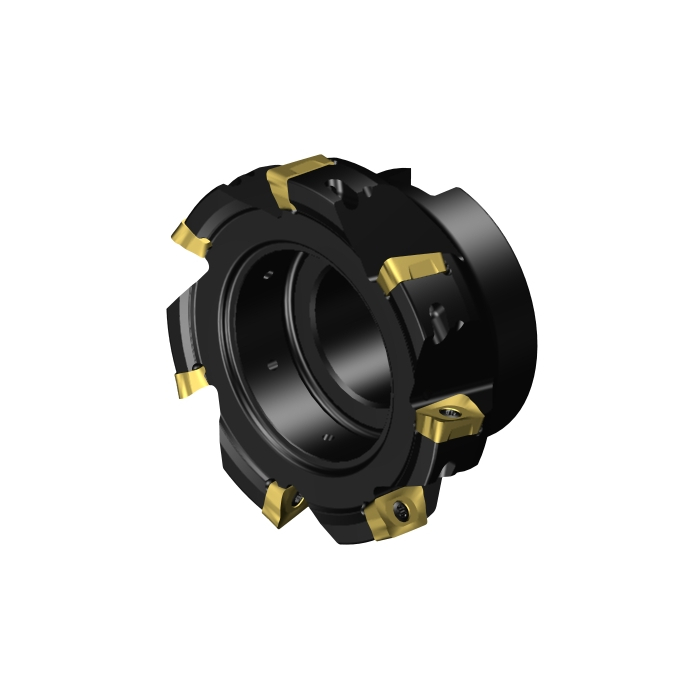

Sandvik Coromant RA390-102R38-18M CoroMill™ 390 square shoulder milling cutter

R 13 384,85 inc. vat
In stock
SKU
5740257
CoroMill® 390 square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 390 square shoulder milling cutter
More Information
DCON - Connection Diameter 38.1mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 50mm
TQ - Torque 3Nm
RPMX - Rotational Speed Maximum 52001/min
WT - Weight Of Item 1246g
OAL - Overall Length 50mm
OHX - Maximum Overhang 50mm
KAPR - Tool Cutting Edge Angle 90deg
RMPX - Maximum Ramping Angle 2.3deg
GAMO - Orthogonal Rake Angle -5.2deg
LAMS - Inclination Angle 13.5deg
AN - Clearance Angle Major 11deg
Insert Thickness 6.33mm
L - Cutting Edge Length 18.45mm
APMX - Depth Of Cut Maximum 15.4mm
W1 - Insert Width 11mm
DC - Cutting Diameter 101.6mm
DCF - Cutting Diameter Face Contact 99.2mm
GAMF - Radial Rake Angle -5.20000004deg
GAMP - Axial Rake Angle 13.50000005deg
AZ - Maximum Plunge Depth 0mm
ORDCODE RA390-102R38-18M
ADINTMS - Adaptive Interface Machine Direction M_FDA1B1_S1500_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-08-18 15:40:00.000
STDLET - Standard Letter B
STDNO - Standard Number ISO6462
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_MH1806_1
Hand R
MIID - Master Insert Identification R390-18..
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code L
SSC - Insert Seat Size Code 18
CICT - Cutting Item Count 7
ZEFP - Peripheral Effective Cutting Edge Count 7
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential True
