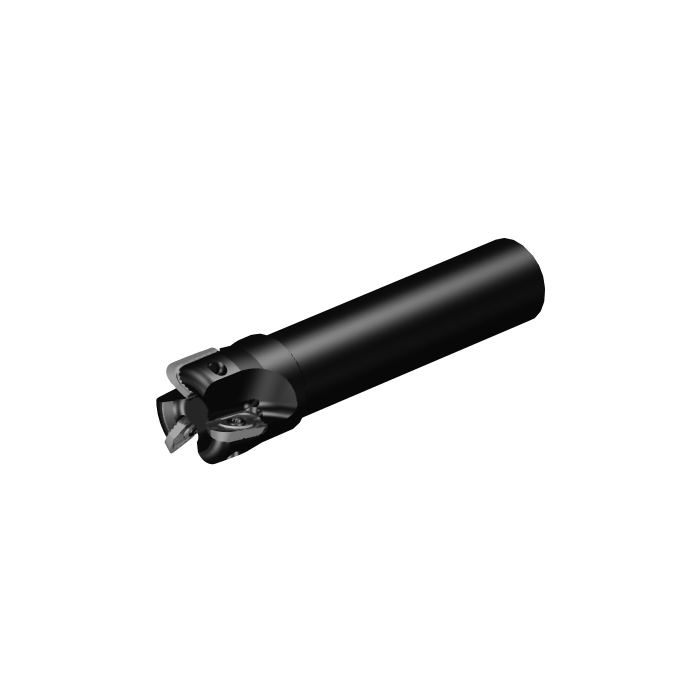

Sandvik Coromant RA790-032O25S1-16M CoroMill™ 790 square shoulder milling cutter

Name: Sandvik Coromant RA790-032O25S1-16M CoroMill™ 790 square shoulder milling cutter
SKU: 5740373
Price: 11696.65 ZAR
Availability: OutOfStock

Be the first to review this product

R 11 696,65 inc. vat

Out of stock

SKU

5740373

CoroMill® 790 square shoulder milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 790 square shoulder milling cutter

More Information

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	25.4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	133.35mm
TQ - Torque	3Nm
RPMX - Rotational Speed Maximum	499001/min
WT - Weight Of Item	0.483kg
OAL - Overall Length	133.35mm
OHX - Maximum Overhang	75.41mm
LSC - Clamping Length	88.35mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	13deg
GAMO - Orthogonal Rake Angle	1deg
LAMS - Inclination Angle	11deg
Insert Thickness	4mm
APMX - Depth Of Cut Maximum	12mm
W1 - Insert Width	11mm
DC - Cutting Diameter	31.75mm
DCF - Cutting Diameter Face Contact	27.75mm
GAMF - Radial Rake Angle	0.99999972deg
GAMP - Axial Rake Angle	11.00000005deg
AZ - Maximum Plunge Depth	2mm
ORDCODE	RA790-032O25S1-16M
ADINTMS - Adaptive Interface Machine Direction	M_CYLR_S1000_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-07-05 10:05:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_ML1604_1
Hand	R
MIID - Master Insert Identification	R790-1604..
IFS - Insert Mounting Style Code	3
SSC - Insert Seat Size Code	16
CICT - Cutting Item Count	3
ZEFP - Peripheral Effective Cutting Edge Count	3
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
LOCAP - Location Aid Property	False
CPDF - Cutting Pitch Differential	False
