R 12 254,40
inc. vat
Out of stock
SKU
5740360

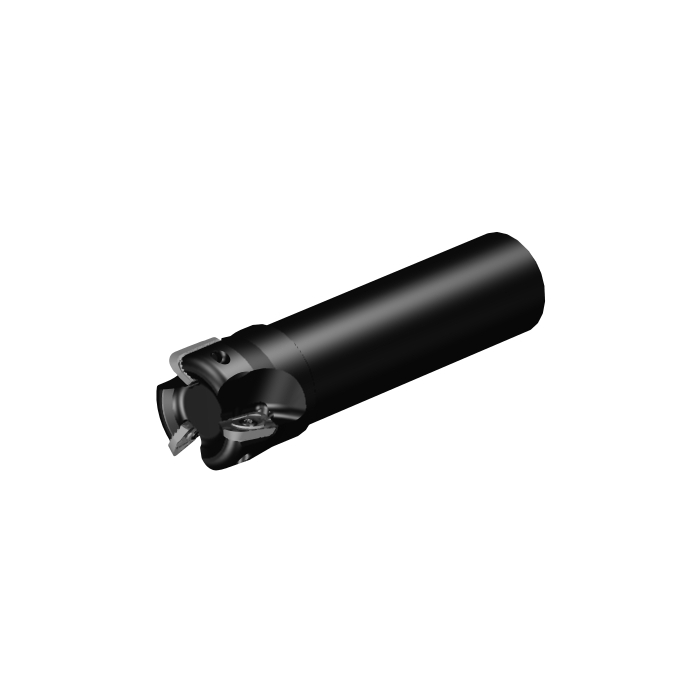

CoroMill® 790 square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 790 square shoulder milling cutter
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 31.75mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 133.35mm |
TQ - Torque | 3Nm |
RPMX - Rotational Speed Maximum | 439001/min |
WT - Weight Of Item | 777g |
OAL - Overall Length | 133.35mm |
OHX - Maximum Overhang | 75.41mm |
LSC - Clamping Length | 88.35mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 10deg |
GAMO - Orthogonal Rake Angle | 1.3deg |
LAMS - Inclination Angle | 11deg |
Insert Thickness | 4mm |
APMX - Depth Of Cut Maximum | 12mm |
W1 - Insert Width | 11mm |
DC - Cutting Diameter | 38.1mm |
DCF - Cutting Diameter Face Contact | 34.1mm |
GAMF - Radial Rake Angle | 1.29999974deg |
GAMP - Axial Rake Angle | 11.00000005deg |
AZ - Maximum Plunge Depth | 2mm |
ORDCODE | RA790-038O32S1-16M |
ADINTMS - Adaptive Interface Machine Direction | M_CYLR_S1250_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-04-13 01:47:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_ML1604_1 |
Hand | R |
MIID - Master Insert Identification | R790-1604.. |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 16 |
CICT - Cutting Item Count | 3 |
ZEFP - Peripheral Effective Cutting Edge Count | 3 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
LOCAP - Location Aid Property | False |
CPDF - Cutting Pitch Differential | False |
