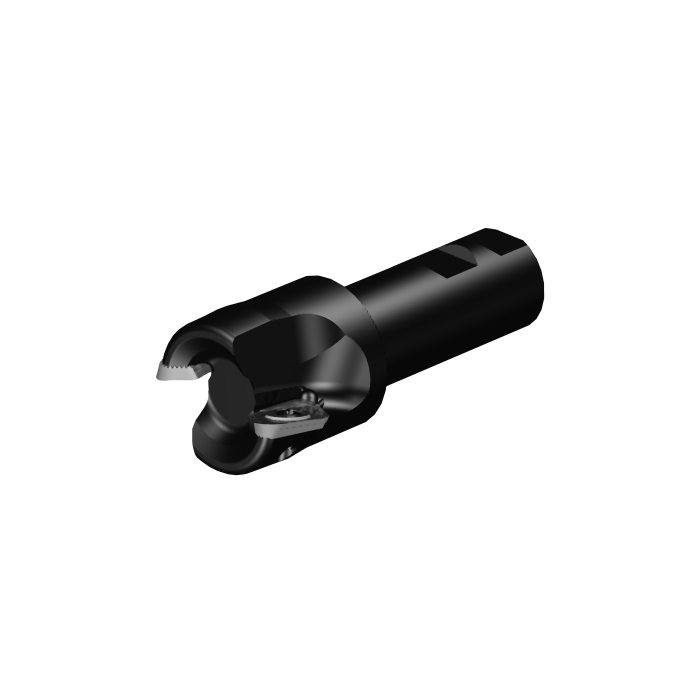

Sandvik Coromant RA790-050M32S2-22L CoroMill™ 790 square shoulder milling cutter

Name: Sandvik Coromant RA790-050M32S2-22L CoroMill™ 790 square shoulder milling cutter
SKU: 5738760
Price: 13357.25 ZAR
Availability: OutOfStock

Be the first to review this product

R 13 357,25 inc. vat

Out of stock

SKU

5738760

CoroMill® 790 square shoulder milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 790 square shoulder milling cutter

More Information

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	31.75mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	124.206mm
TQ - Torque	5Nm
RPMX - Rotational Speed Maximum	314001/min
WT - Weight Of Item	876g
OAL - Overall Length	124.206mm
OHX - Maximum Overhang	66.266mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	13deg
GAMO - Orthogonal Rake Angle	6.2deg
LAMS - Inclination Angle	13deg
Insert Thickness	5mm
H - Shank Height	29.36mm
MHD - Mounting Hole Distance	28.971875mm
APMX - Depth Of Cut Maximum	18mm
W1 - Insert Width	16mm
DC - Cutting Diameter	50.8mm
DCF - Cutting Diameter Face Contact	42.8mm
GAMF - Radial Rake Angle	6.19999975deg
GAMP - Axial Rake Angle	12.99999994deg
AZ - Maximum Plunge Depth	3mm
ORDCODE	RA790-050M32S2-22L
ADINTMS - Adaptive Interface Machine Direction	M_CYLW_S1250_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-04-13 01:39:00.000
STDLET - Standard Letter	HB
STDNO - Standard Number	DIN6535
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_ML2205_1
Hand	R
MIID - Master Insert Identification	R790-2205..
IFS - Insert Mounting Style Code	3
SSC - Insert Seat Size Code	22
TCDCON - Connection Diameter Tolerance	h6
CICT - Cutting Item Count	2
ZEFP - Peripheral Effective Cutting Edge Count	2
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
