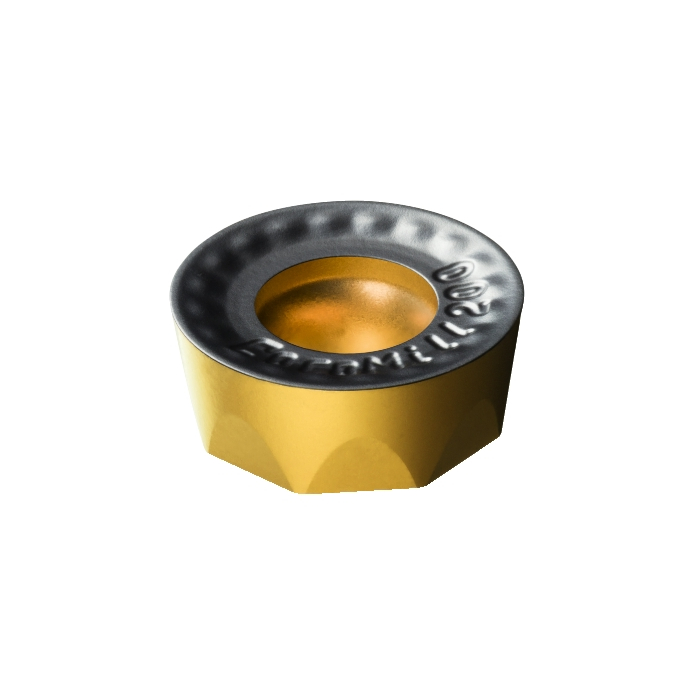

Sandvik Coromant RCKT 12 04 M0-PH 4330 CoroMill™ 200 insert for milling
R 225,40
inc. vat
In stock
SKU
7564610
CoroMill® 200 insert for milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 200 insert for milling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 6g |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 12mm |
| RE - Corner Radius | 6mm |
| Insert Thickness | 4.7625mm |
| D1 - Fixing Hole Diameter | 4mm |
| APMX - Depth Of Cut Maximum | 1.76mm |
| ORDCODE | RCKT 12 04 M0-PH 4330 |
| CHANGEDATE | 2022-09-23 21:21:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 12 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_RC1204M_1 |
| Grade | 4330 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | PH |
| CEDC - Cutting Edge Count | 8 |
| WEP - Wiper Edge Property | False |
