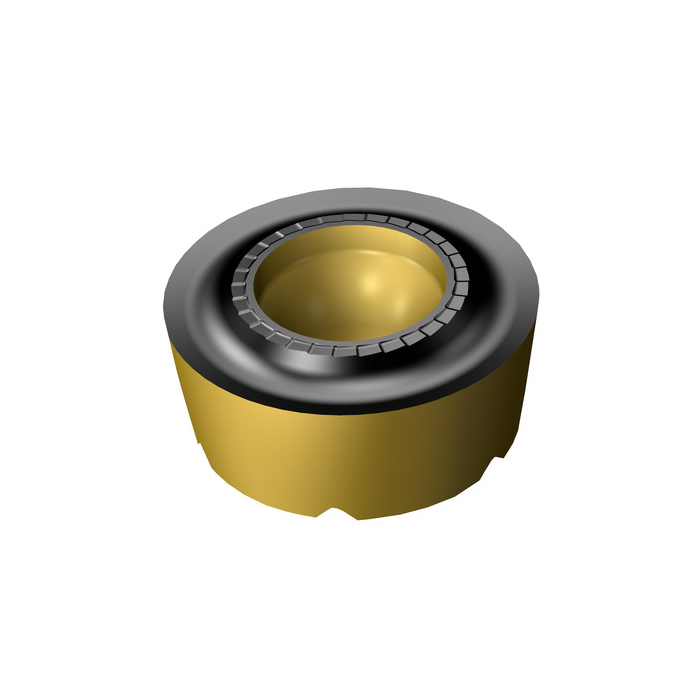

Sandvik Coromant RCMT 08 03 MP-M3 S205 CoroTurn™ 107 insert with rail for turning
R 197,80
inc. vat
In stock
SKU
7960659
CoroTurn® 107 insert with rail for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert with rail for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 1.7g |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 8mm |
| RE - Corner Radius | 4mm |
| Insert Thickness | 3.175mm |
| ORDCODE | RCMT 08 03 MP-M3 S205 |
| BMC - Body Material Code | 2 |
| CHANGEDATE | 2022-09-23 22:08:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 08 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_TN0803MP_1 |
| Grade | S205 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | M3 |
| CEDC - Cutting Edge Count | 6 |
| WEP - Wiper Edge Property | False |
