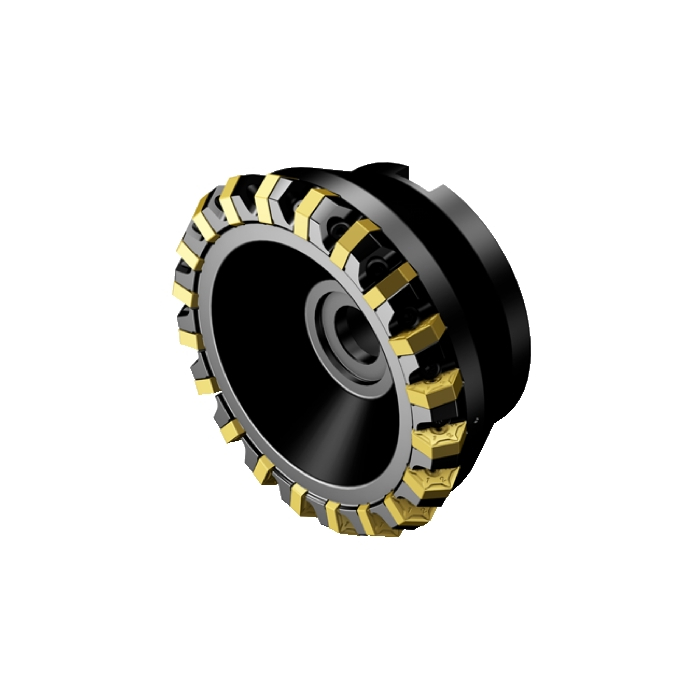

Sandvik Coromant S-60-160Q40-09H CoroMill™ S-60 face milling cutter

Name: Sandvik Coromant S-60-160Q40-09H CoroMill™ S-60 face milling cutter
SKU: 6169936
Price: 30514.10 ZAR
Availability: InStock

R 30 514,10 inc. vat

In stock

SKU

6169936

CoroMill® S-60 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® S-60 face milling cutter

More Information
DCON - Connection Diameter	40mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	63mm
TQ - Torque	3Nm
RPMX - Rotational Speed Maximum	76001/min
WT - Weight Of Item	6.745kg
OAL - Overall Length	63mm
OHX - Maximum Overhang	63mm
DBC - Diameter Bolt Circle	66.7mm
KAPR - Tool Cutting Edge Angle	60deg
RMPX - Maximum Ramping Angle	0deg
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	16.2mm
RE - Corner Radius	0.79375mm
Insert Thickness	5.56mm
APMX - Depth Of Cut Maximum	6mm
DC - Cutting Diameter	160mm
DCF - Cutting Diameter Face Contact	160mm
DCX - Maximum Cutting Diameter	169mm
AZ - Maximum Plunge Depth	0mm
ORDCODE	S-60-160Q40-09H
ADINTMS - Adaptive Interface Machine Direction	M_FDA1C4_G4000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-03-22 12:17:00.000
STDLET - Standard Letter	C
STDNO - Standard Number	ISO6462
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_NI0905_1
Hand	R
MIID - Master Insert Identification	HNEF 090508
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	H
SSC - Insert Seat Size Code	09
CICT - Cutting Item Count	16
ZEFP - Peripheral Effective Cutting Edge Count	16
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
